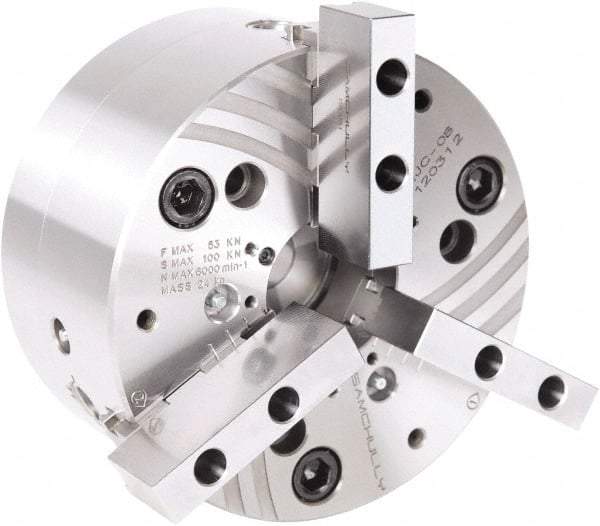

Samchully - 3 Jaw, 315mm Chuck Diam, Plain Back Mount, 104mm Through Hole Diam, Drawtube Hydraulic Power Lathe Chuck - Tongue & Groove Jaw Interface, 3,600 RPM, Steel Body
Item #: 41809609
Brand: Samchully
Model #: QJC212BLANK
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (mm) | 315.00 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (mm) | 104.00 |
| Chuck Actuation Style | Drawtube |
| Operation Type | Hydraulic |
| Jaw Interface Type | Tongue & Groove |
| Jaw Stroke Diameter (mm) | 16.00 |
| Piston Stroke Length (mm) | 28.00 |
| Maximum Static Gripping Force (kN) | 160.00 |
| Maximum Static Gripping Force (lbf) | 0.71 |
| Maximum RPM | 3600 |
| Body Material | Steel |
| Power Cylinder Compatibility | SD21511 |
| Includes | T-Nuts; Mounting Bolts; Master Jaws; Soft Top Jaws; Handle; Blank Drawnut |
