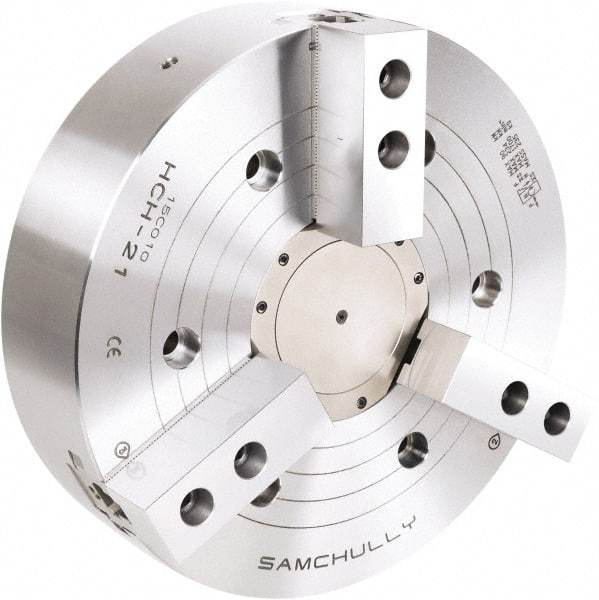

Samchully - 3 Jaw, 800mm Chuck Diam, Plain Back Mount, 240mm Through Hole Diam, Drawtube Hydraulic Power Lathe Chuck - 3mm x 60° Serrated Jaw Interface, 1,200 RPM, Steel Body
Item #: 41809468
Brand: Samchully
Model #: HCH32BLANK
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (mm) | 800.00 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (mm) | 240.00 |
| Chuck Actuation Style | Drawtube |
| Operation Type | Hydraulic |
| Jaw Interface Type | 3mm x 60 Serrated |
| Jaw Stroke Diameter (mm) | 18.00 |
| Piston Stroke Length (mm) | 34.00 |
| Maximum Static Gripping Force (kN) | 240.00 |
| Maximum Static Gripping Force (lbf) | 1.07 |
| Maximum RPM | 1200 |
| Body Material | Steel |
| Power Cylinder Compatibility | SYHL2816 |
| Includes | T-Nuts; Mounting Bolts; Master Jaws; Soft Top Jaws; Handle |
