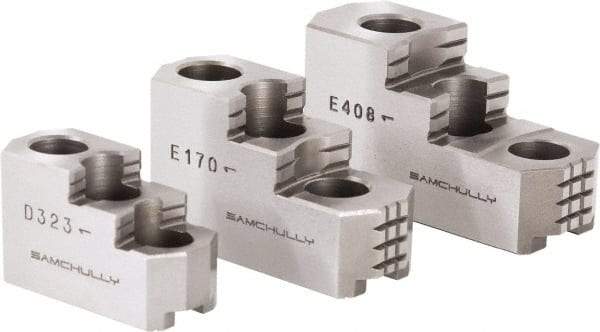

Samchully - 4" Max Chuck Diam Compatibility, Steel 1.5mm x 60° Serrated Hard Lathe Top Jaws - 0 Steps, 23mm Wide x 53mm Long x 27.5mm High
Item #: 41773201
Brand: Samchully
Model #: HB04A1
Exact Tooling IR#: 04
Features and Benefits
Top jaws, also known as hard or step jaws, hold a workpiece during an operation. They are reversible and are bolted onto the master jaw.
| Product Specifications | |
|---|---|
| Jaw Type | Top Jaws |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 4 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 4.00 |
| Number of Steps | 0 |
| Material | Steel |
| Overall Width/Diameter (mm) | 23.00 |
| Brand Compatibility | Kitagawa B-04 |
| Overall Length (mm) | 53.00 |
| Minimum Compatible Chuck Diameter (Inch) | 4 |
| Number of Jaws | 3 |
| Overall Height (mm) | 27.50 |
| Fastener Size (mm) | M8 |
