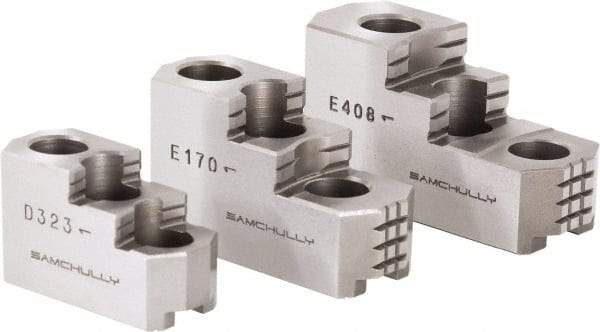

Samchully - 15 to 18" Chuck Diam Compatibility, Steel 1.5mm x 60° Serrated Hard Lathe Top Jaws - 2 Steps, 62mm Wide x 149mm Long x 86mm High
Item #: 41773193
Brand: Samchully
Model #: HB15N1
Exact Tooling IR#: 04
Features and Benefits
Top jaws, also known as hard or step jaws, hold a workpiece during an operation. They are reversible and are bolted onto the master jaw.
| Product Specifications | |
|---|---|
| Jaw Type | Top Jaws |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 15; 18 |
| Number of Steps | 2 |
| Material | Steel |
| Overall Width/Diameter (mm) | 62.00 |
| Brand Compatibility | Kitagawa N-15; Kitagawa N-18; Kitagawa B-215 |
| Overall Length (mm) | 149.00 |
| Minimum Compatible Chuck Diameter (Inch) | 15 |
| Number of Jaws | 3 |
| Overall Height (mm) | 86.00 |
| Fastener Size (mm) | M20 |
