Samchully - 32" Max Chuck Diam Compatibility, Steel 3mm x 60° Serrated Hard Lathe Top Jaws - 1 Step, 70mm Wide x 168mm Long x 75mm High
Item #: 41773169
Brand: Samchully
Model #: HB32SB2
Exact Tooling IR#: 04
Features and Benefits

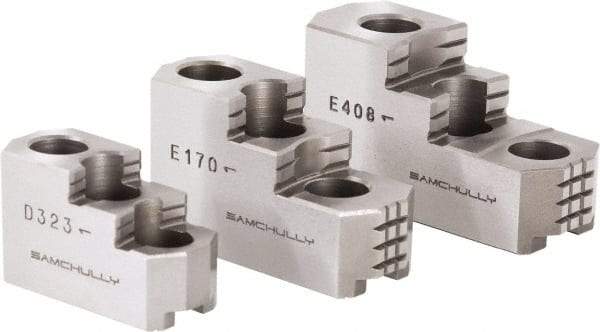

Top jaws, also known as hard or step jaws, hold a workpiece during an operation. They are reversible and are bolted onto the master jaw.
| Product Specifications | |
|---|---|
| Jaw Type | Top Jaws |
| Jaw Interface Type | 3.0mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 32 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 32.00 |
| Number of Steps | 1 |
| Material | Steel |
| Overall Width/Diameter (mm) | 70.00 |
| Overall Length (mm) | 168.00 |
| Minimum Compatible Chuck Diameter (Inch) | 32 |
| Number of Jaws | 3 |
| Overall Height (mm) | 75.00 |
| Fastener Size (mm) | M20 |
