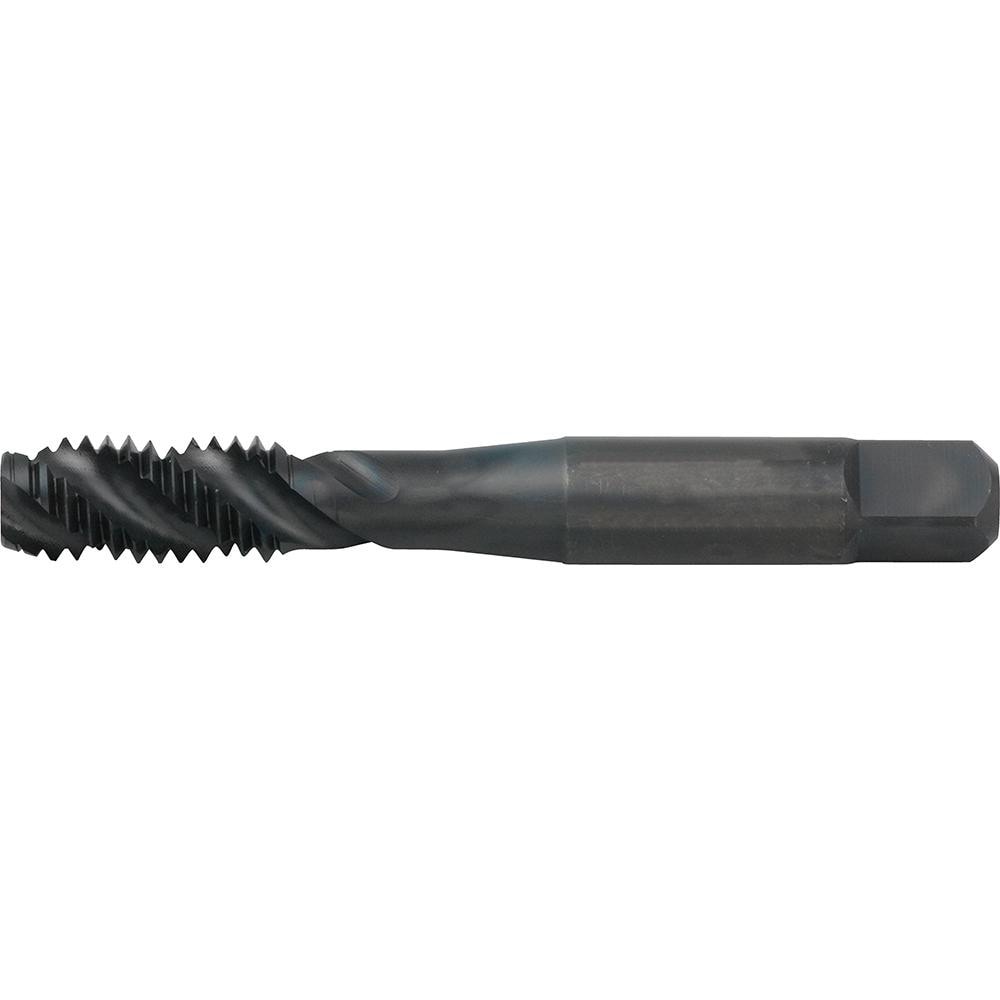

Brand: Widia / Part #: 5365650
Item #: 97535363
Brand: Widia
Model #: 5365650
Product Specifications
| Thread Size (mm) | M20x1.5 |
| Chamfer | Modified Bottoming |
| Thread Limit | D6 |
| Class Of Fit | 6H |
| Number Of Flutes | 4 |
| Material | High Speed Steel |
| Threads per Inch | 17 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiCN |
| Thread Depth (mm) | 52.80 |
| Coolant Through | No |
| Thread Length (mm) | 31.00 |
| Overall Length (mm) | 113.5000 |
| Thread Pitch (mm) | 1.50 |
| Thread Standard | Metric |
| Material Grade | WP42EG |
| Shank Diameter (mm) | 16.5600 |
| Square Length (mm) | 17.50 |
| Square Size (mm) | 12.34 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
