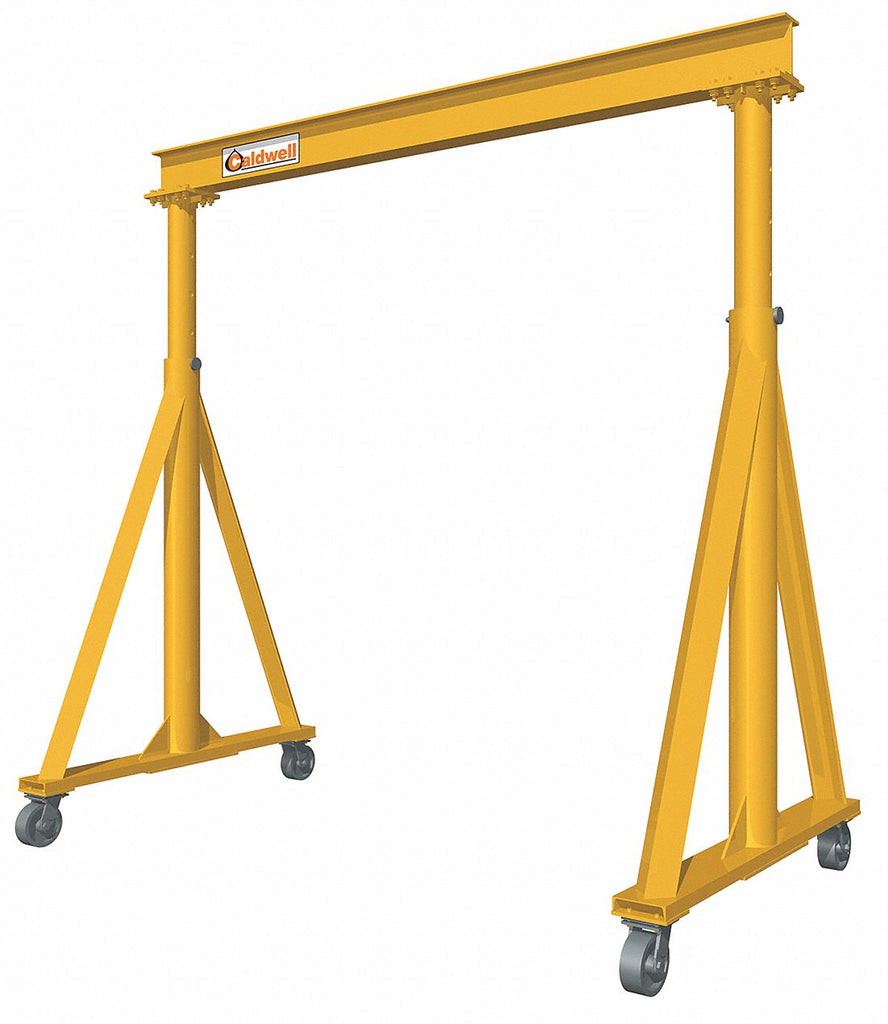

Portable Gantry Crane, 6000 lb. Load Capacity, 4.66" I Beam Flange Width
Item #: 40M973
Brand: CALDWELL
Supplier #: K90-3-9/14
Exact Tooling IR#: 08
| Product Specifications | |
|---|---|
| Item | Portable Gantry Crane |
| Load Capacity | 6000 lb. |
| Min. I Beam Height | 76-13/16" |
| Max. I Beam Height | 108" |
| Height Adjustment | Adjustable Height |
| Adjustable Increments | 12" |
| Gantry Crane Span | 14 ft. 5-1/2" |
| Gantry Crane Clear Span | 13 ft. 4" |
| Gantry Crane Depth | 5 ft. |
| I Beam Height | 10.00" |
| I Beam Flange Width | 4.66" |
| Finish | Enamel |
| Color | Yellow |
| Material | Steel |
| Caster Type | (4) Swivel |
| Caster Material | Steel |
| Wheel Diameter | 8" |
| Wheel Width | 3" |
| Standards | AISC CMAA 70, OSHA 1910.184 |
| Includes | (2) Supports, I-Beam, Assembly Hardware |
| Connection Type | Clamp On |
| UNSPSC # | 24101619 |
| Country of Origin | USA |
