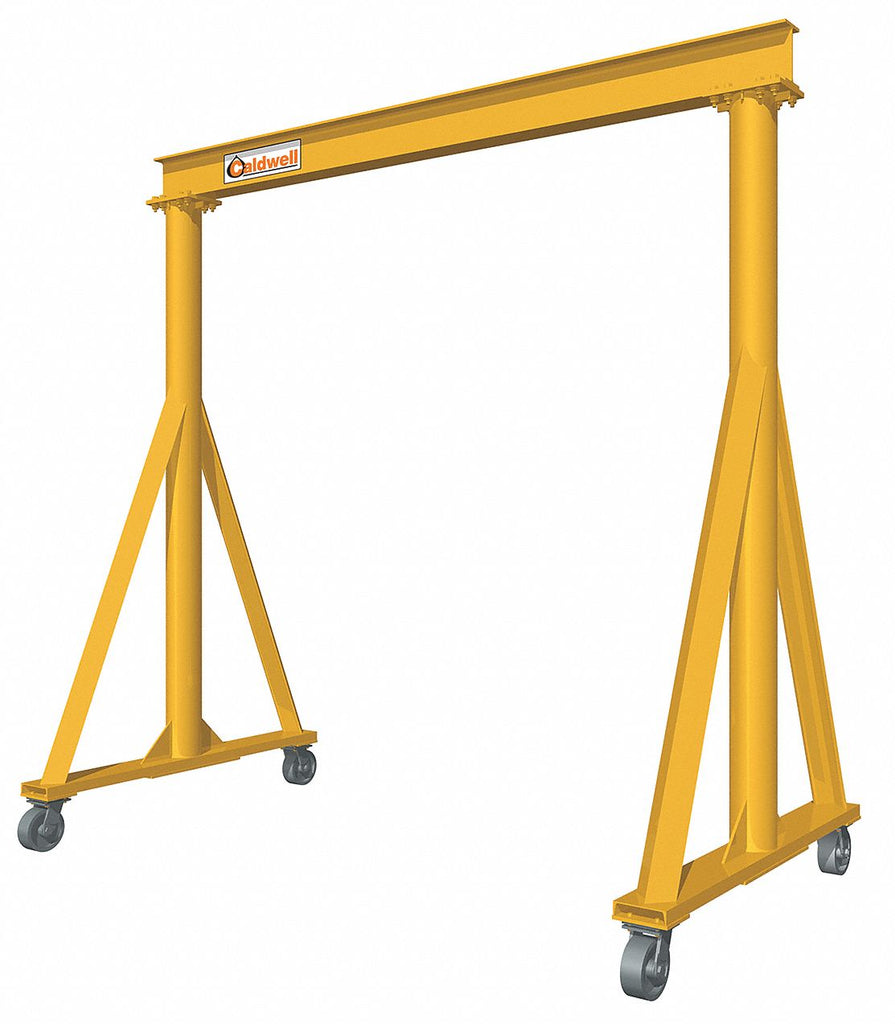

Portable Gantry Crane, 4000 lb. Load Capacity, 4.00" I Beam Flange Width, 192" Min. I Beam Height
Item #: 40M789
Brand: CALDWELL
Supplier #: H90-2-16/10
Exact Tooling IR#: 08
| Product Specifications | |
|---|---|
| Item | Portable Gantry Crane |
| Load Capacity | 4000 lb. |
| Min. I Beam Height | 192" |
| Max. I Beam Height | 192" |
| Height Adjustment | Fixed Height |
| Gantry Crane Span | 10 ft. 11" |
| Gantry Crane Clear Span | 10 ft. 4" |
| Gantry Crane Depth | 7 ft. 6" |
| I Beam Height | 8.00" |
| I Beam Flange Width | 4.00" |
| Finish | Enamel |
| Color | Yellow |
| Material | Steel |
| Caster Type | (4) Swivel |
| Caster Material | Steel |
| Wheel Diameter | 8" |
| Wheel Width | 3" |
| Standards | AISC CMAA 70, OSHA 1910.184 |
| Includes | (2) Supports, I-Beam, Assembly Hardware |
| Connection Type | Clamp On |
| UNSPSC # | 24101619 |
| Country of Origin | USA |
