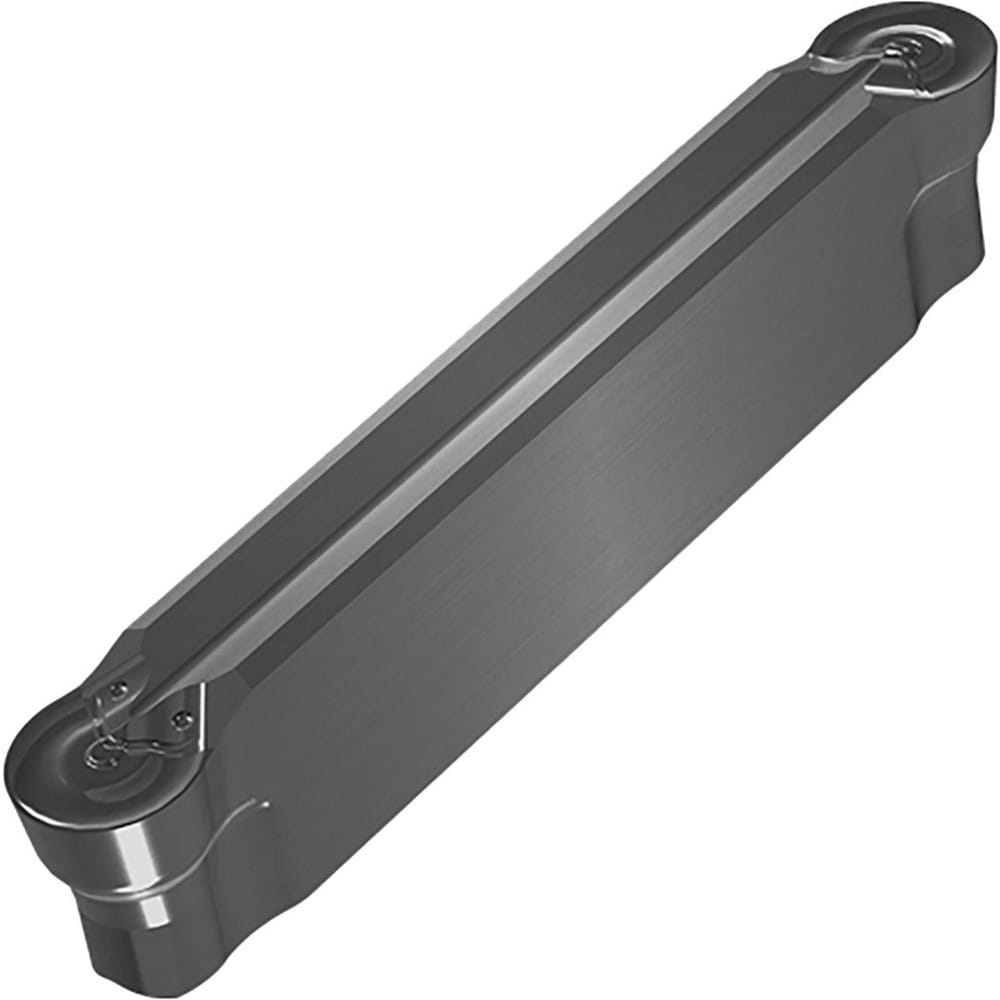

Brand: Vargus / Part #: 084-00016
Item #: 90940461
Brand: Vargus
Model #: 084-00016
Product Specifications
| Insert Style | VG-Cut |
| Insert Size Code | VGD 4.0-200 GR VKG |
| Insert Material | Carbide |
| Manufacturer Grade | VKG |
| Cutting Width (mm) | 4.000 |
| Maximum Depth of Cut (mm) | 23.00 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (mm) | 2 |
| Lead Angle | 0.000 |
| Rake | Neutral |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Facing; Turning; Parting; Boring |
| Series | VG-Cut |
| Coating Process | CVD |
| Overall Length (Decimal Inch) | 0.9842 |
| Overall Length (mm) | 25.0000 |
| Chip Breaker | GR |
| Overall Width | 4.0000 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1574 |
| Coating/Finish | TiCN/Al2O3 |
