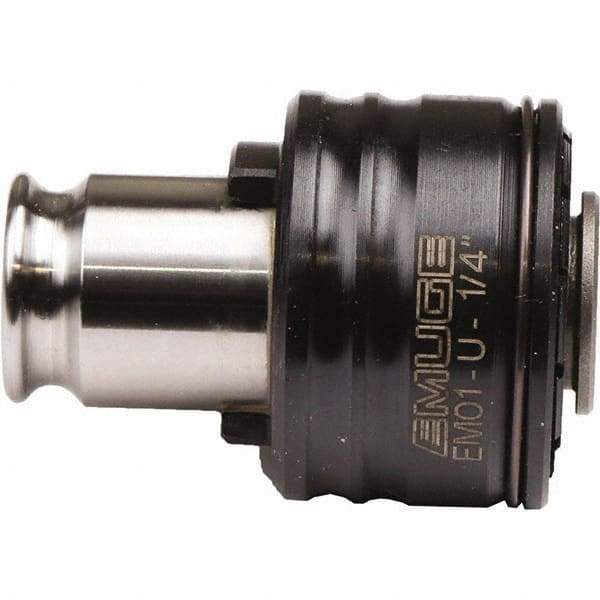

Emuge - 0.4724" Tap Shank Diam, 0.3543" Tap Square Size, #1 Tapping Adapter - 0.8858" Projection, 1.4567" Tap Depth, 1.7323" OAL, 3/4" Shank OD, Through Coolant, Series EM01-U-E
Item #: 40942310
Brand: Emuge
Model #: F0811112
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Adapter Size | 1 |
| Tap Shank Diameter (mm) | 12.00 |
| Tap Shank Diameter (Decimal Inch) | 0.4724 |
| Tap Square Size (mm) | 9.00 |
| Tap Square Size (Decimal Inch) | 0.3543 |
| Quick Change | Yes |
| Projection (mm) | 22.50 |
| Projection (Decimal Inch) | 0.8858 |
| Tap Depth (mm) | 37.00 |
| Tap Depth (Decimal Inch) | 1.4567 |
| Series | EM01-U-E |
| Overall Length (mm) | 44.00 |
| Overall Length (Decimal Inch) | 1.7323 |
| Flange Diameter (mm) | 33.00 |
| Flange Diameter (Decimal Inch) | 1.2992 |
| Outside Shank Diameter (mm) | 19.00 |
| Outside Shank Diameter (Decimal Inch) | 0.7480 |
| Through Coolant | Yes |
| PSC Code | 5136 |
