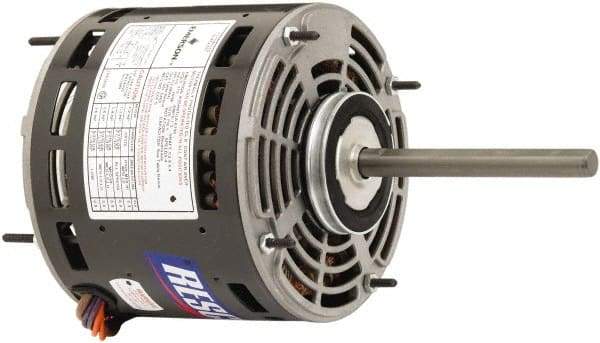

US Motors - 3/4 Max hp, 1,075 Max RPM, Permanent Split Cap Electric AC DC Motor - 208-230 V Input, Single Phase, 48Y Frame, 1/2" Shaft Diam, Stud Mount, TEAO Enclosure
Item #: 40698177
Brand: US Motors
Model #: 5482H
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Permanent Split Cap |
| Type of Enclosure | TEAO |
| Maximum HorsePower | 3/4 |
| Minimum Horsepower | 1/4 |
| Phase | Single |
| Input Voltage | 208-230 |
| Frame Size | 48Y |
| Full Load Amperage | 4.5-4.0 |
| Mount Type | Stud |
| Bearing Type | Ball |
| Shaft Diameter (Decimal Inch) | 0.5000 |
| Service Factor Rating | 1.00 |
| Insulation Class | B |
| Maximum RPM | 1075 |
| PSC Code | 6105 |
