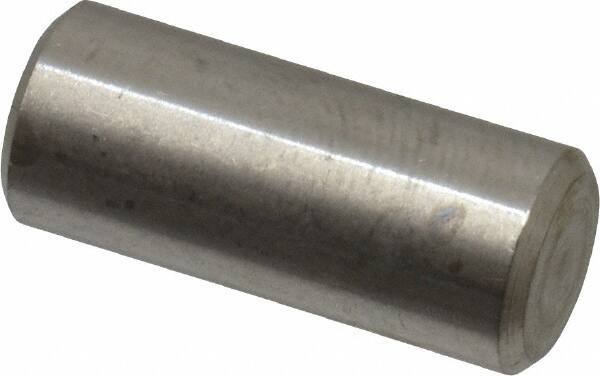

Value Collection - 5/16" Diam x 3/4" Pin Length 316 Stainless Steel Standard Dowel Pin - Bright Finish, 2 Beveled End
Item #: 40630337
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Standard pull out styles are designed for easy removal when frequent reassembly is required. They have a smooth finish and are used in applications featuring a through-hole.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Standard Pull Out |
| Material | Stainless Steel |
| Pin Diameter (Inch) | 5/16 |
| Pin Length (Decimal Inch) | 0.7500 |
| Pin Length (Inch) | 3/4 |
| Fastener Standard | ASME B18.8.2 |
| Material Grade | 316 |
| Finish/Coating | Bright |
| System of Measurement | Inch |
| End Type | (2) Beveled |
| Diameter Tolerance (Decimal Inch) | 0.0002 |
