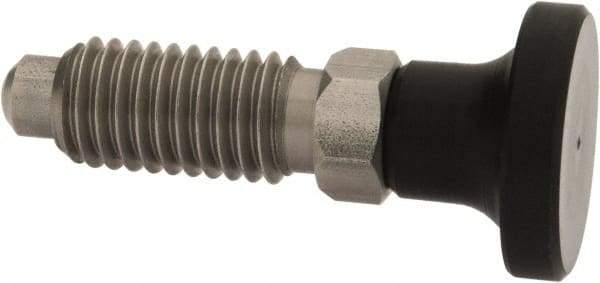

Gibraltar - 1/2-13, 1" Thread Length, 0.31" Max Plunger Diam, 0.5 Lb Init to 1.75 Lb Final End Force, Knob Handle Plunger - Delrin Knob, 1-1/4" Body Length, 1" Length Under Head/Shoulder, 1/4" Plunger Projection
Item #: 40074585
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 1/2-13 |
| Thread Length (Decimal Inch) | 1.0000 |
| Plunger Type | Non-Locking |
| Knob Style | Delrin |
| Body Length (Decimal Inch) | 1.2500 |
| Length Under Head/Shoulder (Decimal Inch) | 1.0000 |
| Plunger Projection (Decimal Inch) | 0.2500 |
| Maximum Plunger Diameter (Decimal Inch) | 0.3100 |
| Initial End Force (Lb.) | 0.50 |
| Final End Force (Lb.) | 1.75 |
| Locking Element | Yes |
| Plunger Length (Decimal Inch) | 1.9000 |
| Head Diameter (Decimal Inch) | 1.0000 |
| Head & Shoulder Height (Decimal Inch) | 0.9000 |
| Hex Size (Inch) | 1/2 |
| Material | Stainless Steel |
