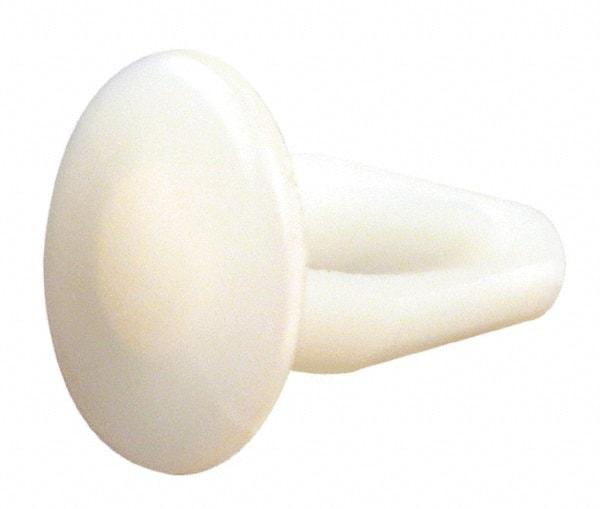

Made in USA - 0.32" to 0.335" Hole Diam, 0.97" OAL, Arrow Shank, Nylon Panel Rivet - 0.9" Length Under Head, 1/16" to 0.34" Material Thickness, 0.683" Head Diam
Item #: 40072217
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Panel rivets are inserted into punched or predrilled holes in thin materials. They are push-in fasteners that resist shaking, vibration, loosening and abrasion.
Arrow shanks are compressed into holes and snap into place on the other side for a secure hold.
| Product Specifications | |
|---|---|
| Type | Panel Rivet |
| Shank Type | Arrow |
| Minimum Hole Diameter (Decimal Inch) | 0.3200 |
| Maximum Hole Diameter (Decimal Inch) | 0.3350 |
| Minimum Material Thickness (Decimal Inch) | 0.0620 |
| Maximum Material Thickness (Decimal Inch) | 0.3400 |
| Head Diameter (Decimal Inch) | 0.6830 |
| Head Height (Decimal Inch) | 0.0700 |
| Length Under Head (Decimal Inch) | 0.9000 |
| Overall Length (Decimal Inch) | 0.9700 |
| Body Diameter (Decimal Inch) | 0.3750 |
| Material | Nylon |
