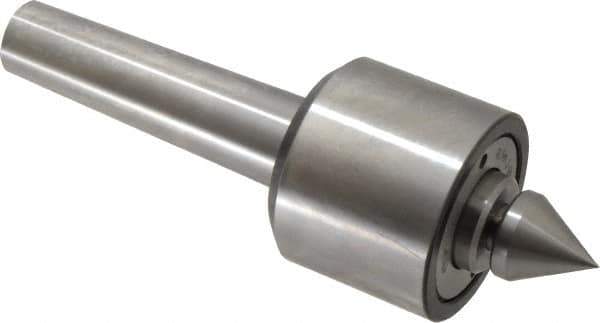

Riten - MT4 Taper Shank, 2-7/8" Head Diam Live Center - 5,500 Max RPM, 3-5/16" Head Length, 1-1/4" Point Diam, 1/4" Point Len, 550 Lb Max Workpc, 2-15/16" OAL, Male Point
Item #: 40016818
Brand: Riten
Model #: 49104
Exact Tooling IR#: 04
Features and Benefits
Male points are used for locating internal chamfers during turning operations.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 550.00 |
| Point Style | Male |
| Point Diameter (Inch) | 1-1/4 |
| Point Diameter (Decimal Inch) | 1.2500 |
| Point Length (Inch) | 1/4 |
| Accuracy (Decimal Inch) | 0.000300 |
| Head Diameter (Inch) | 2-7/8 |
| Head Length (Inch) | 3-5/16 |
| Overall Length (Inch) | 2-15/16 |
| Gage Line Clearance (Inch) | 3/8 |
| Maximum RPM | 5500 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
