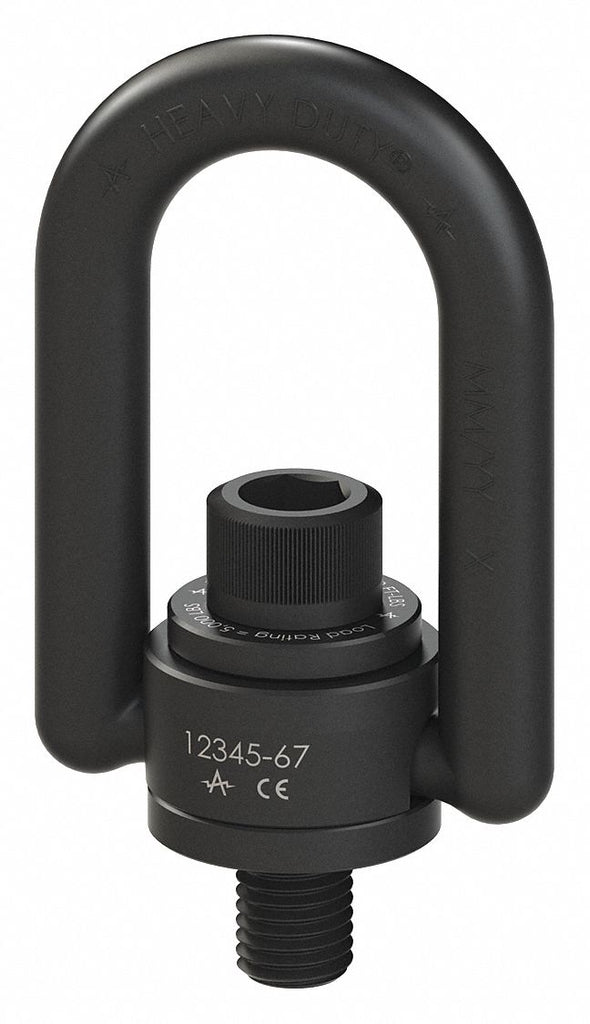

Bolt-On Hoist Ring, 1/2-13 Thread Size, 2500 lb. Working Load Limit, 180° Pivot
Item #: 39RJ67
Brand: ADB HOIST RINGS
Supplier #: 33512
Exact Tooling IR#: 08
Product Specifications | |
---|---|
Item | Hoist Ring |
Mounting Style | Bolt-On |
Series | HDHR |
Pivot | 180 Degrees |
Swivel Angle | 360 Degrees |
Working Load Limit | 2500 lb. |
Bail Dia. | 1" |
Thread Size | 1/2-13 |
Dimension a | 1" |
Dimension B | 3-1/2" |
Dimension C | 1-1/2" |
Dimension d | 3/4" |
Dimension E | 3/4" |
Dimension F | 5-5/16" |
Installation Torque | 28 ft.-lb. |
Standards | ASME B30.26 |
UNSPSC # | 24101602 |
Country of Origin | USA |
