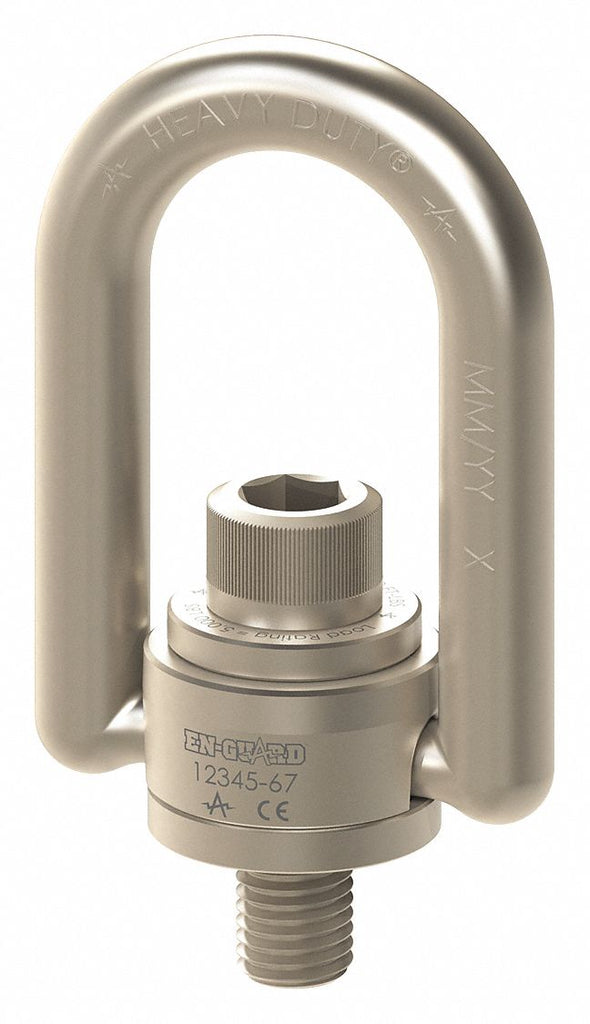

Bolt-On Hoist Ring, 2-4-1/2 Thread Size, 30,000 lb. Working Load Limit, 180° Pivot
Item #: 39RJ22
Brand: ADB HOIST RINGS
Supplier #: EN33427
Exact Tooling IR#: 08
Product Specifications | |
---|---|
Item | Hoist Ring |
Mounting Style | Bolt-On |
Series | ENHDHR |
Pivot | 180 Degrees |
Swivel Angle | 360 Degrees |
Working Load Limit | 30,000 lb. |
Bail Dia. | 1" |
Thread Size | 2-4-1/2 |
Dimension a | 2" |
Dimension B | 6-3/4" |
Dimension C | 2-7/8" |
Dimension d | 1-1/4" |
Dimension E | 2-31/32" |
Dimension F | 9-7/32" |
Installation Torque | 1100 ft.-lb. |
UNSPSC # | 24101602 |
Country of Origin | USA |
