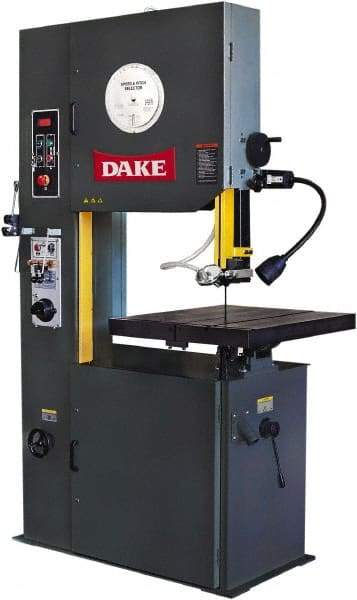

Dake - 26" Throat Capacity, Variable Speed Pulley Vertical Bandsaw - 50 to 415 & 550 to 5,000 SFPM, 3 hp, Three Phase
Item #: 39909528
Brand: Dake
Model #: 987031-2
Exact Tooling IR#: 04
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Drive Type | Variable Speed Pulley |
| Throat Capacity (Inch) | 26 |
| Height Capacity (Inch) | 13 |
| Phase | 3 |
| Blade Width (Inch) | 1/4 to 1 |
| Blade Speeds (SFPM) | 50 to 415; 550 to 5000 |
| Blade Length (Inch) | 184-1/4 |
| Blade Wheel Diameter (Inch) | 26 |
| Table Length (Inch) | 24 |
| Table Width (Inch) | 21 |
| Floor to Table Height (Inch) | 39-3/8 |
| Table Tilt Right (Degrees) | 45.00 |
| Horsepower (HP) | 3.00 |
| Voltage | 220/440 |
| Warranty | Mfr's One Year Warranty |
