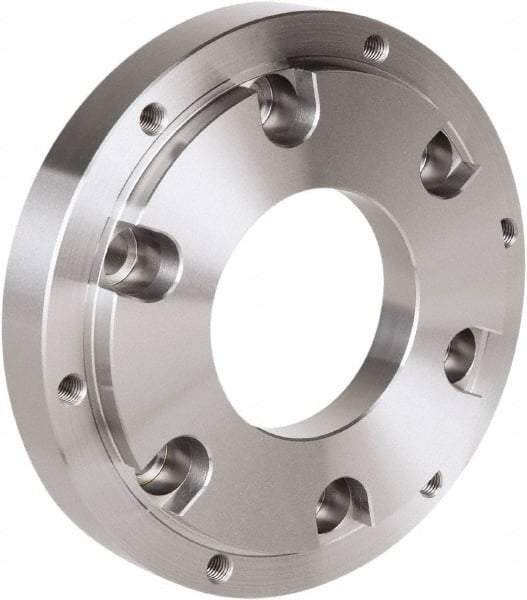

Samchully - Adapter Back Plate for 210mm Diam HC, HCH, HS & MH Lathe Chucks - A2-8 Mount, 103mm Through Hole Diam, 210mm OD, 30mm Flange Height, Steel
Item #: 39611827
Brand: Samchully
Model #: AP08A0830T
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Nominal Chuck Size | 8 |
| Spindle Nose Type | A Series |
| Mount | A2-8 |
| Chuck Compatibility | HC; HCH; HS; MH |
| Through-Hole Diameter (mm) | 103.00 |
| Chuck Diameter Compatibility (mm) | 210.00 |
| Outside Diameter (mm) | 210.00 |
| Flange Height (mm) | 30.00 |
| Material | Steel |
