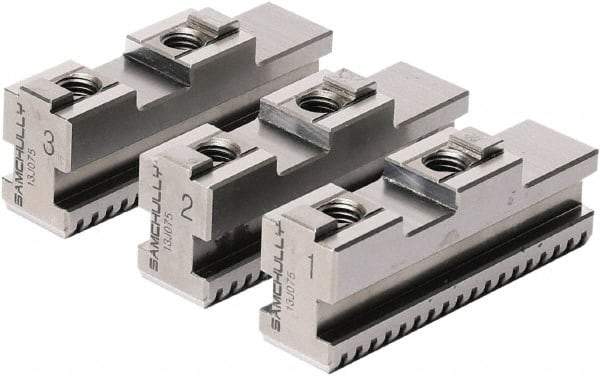

Samchully - 165mm Max Chuck Capacity, Tongue & Groove Interface, Square Soft Lathe Chuck Jaw - 3 Jaw, Steel, 32mm Btw Mount Hole Ctrs, 85mm Long, 20mm Wide, 40mm High, 8mm Groove, M8mm Fastener
Item #: 39389093
Brand: Samchully
Model #: QSB-206
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (mm) | 165.00 |
| Minimum Compatible Chuck Diameter (mm) | 165.00 |
| Overall Height (mm) | 40.00 |
| Groove Width (mm) | 8.00 |
| Distance Between Mount Hole Centers (mm) | 32.00 |
| Tongue Width (Decimal Inch) | 18.0000 |
| Jaw End Shape | Square |
| Fastener Size (mm) | M8 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 20.00 |
| Overall Length (mm) | 85.00 |
