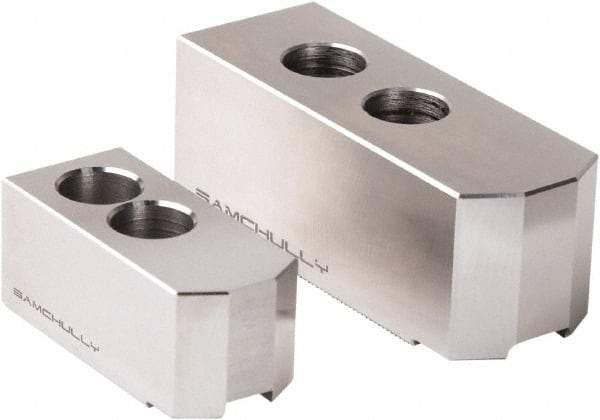

Samchully - 610mm Max Chuck Capacity, 3mm x 60° Serrated Interface, Square Soft Lathe Chuck Jaw - 3 Jaw, Steel, 60mm Btw Mount Hole Ctrs, 180mm Long, 65mm Wide, 70mm High, 25mm Groove, M20mm Fastener
Item #: 39389010
Brand: Samchully
Model #: SB18A2
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 3mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (mm) | 610.00 |
| Minimum Compatible Chuck Diameter (mm) | 530.00 |
| Overall Height (mm) | 70.00 |
| Groove Width (mm) | 25.00 |
| Distance Between Mount Hole Centers (mm) | 60.00 |
| Jaw End Shape | Square |
| Fastener Size (mm) | M20 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 65.00 |
| Overall Length (mm) | 180.00 |
| Maximum External Chucking Diameter (mm) | 610.00 |
| Minimum External Chucking Diameter (mm) | 62.00 |
