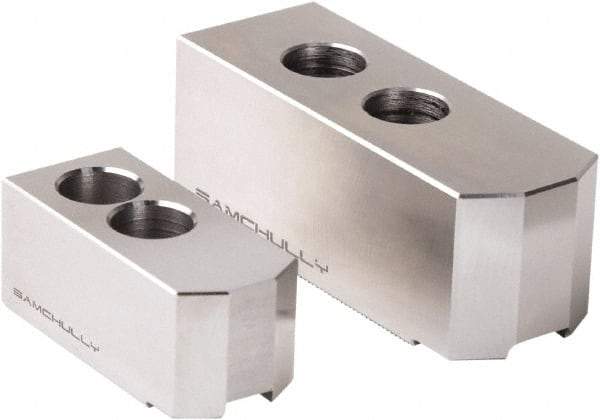

Samchully - 800mm Max Chuck Capacity, 3mm x 60° Serrated Interface, Square Soft Lathe Chuck Jaw - 3 Jaw, Steel, 38mm Btw Mount Hole Ctrs, 160mm Long, 75mm Wide, 75mm High, 25.5mm Groove, M20mm Fastener
Item #: 39389002
Brand: Samchully
Model #: SB32B2
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 3mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (mm) | 800.00 |
| Minimum Compatible Chuck Diameter (mm) | 800.00 |
| Overall Height (mm) | 75.00 |
| Groove Width (mm) | 25.50 |
| Distance Between Mount Hole Centers (mm) | 38.00 |
| Jaw End Shape | Square |
| Fastener Size (mm) | M20 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 75.00 |
| Overall Length (mm) | 160.00 |
| Maximum External Chucking Diameter (mm) | 800.00 |
| Minimum External Chucking Diameter (mm) | 240.00 |
