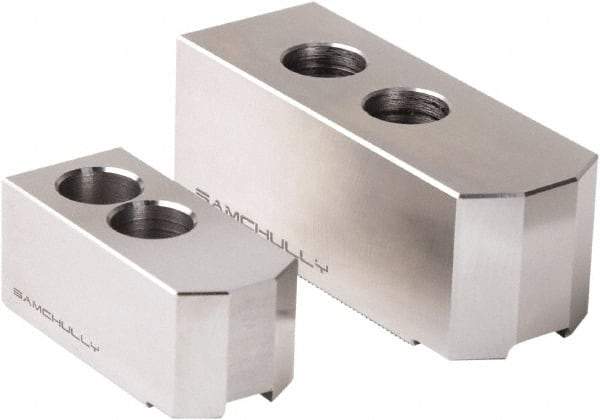

Samchully - 800mm Max Chuck Capacity, Tongue & Groove Interface, Square Soft Lathe Chuck Jaw - 3 Jaw, Steel, 76.2mm Btw Mount Hole Ctrs, 165mm Long, 75mm Wide, 75mm High, 12.7mm Groove, M20mm Fastener
Item #: 39388996
Brand: Samchully
Model #: SB32GB
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (mm) | 800.00 |
| Minimum Compatible Chuck Diameter (mm) | 800.00 |
| Overall Height (mm) | 75.00 |
| Groove Width (mm) | 12.70 |
| Distance Between Mount Hole Centers (mm) | 76.20 |
| Tongue Width (Decimal Inch) | 19.0250 |
| Jaw End Shape | Square |
| Fastener Size (mm) | M20 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 75.00 |
| Overall Length (mm) | 165.00 |
| Maximum External Chucking Diameter (mm) | 800.00 |
| Minimum External Chucking Diameter (mm) | 240.00 |
