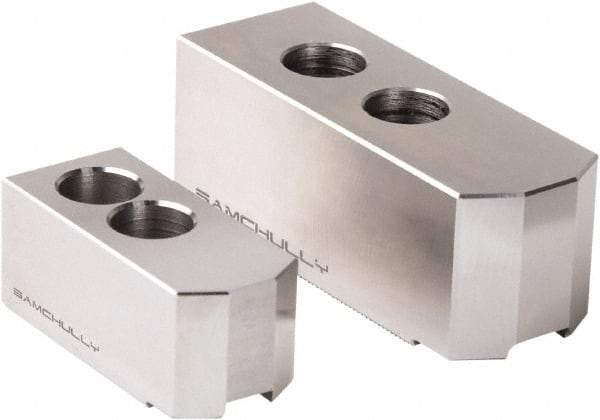

Samchully - 1600mm Max Chuck Capacity, 3mm x 60° Serrated Interface, Square Soft Lathe Chuck Jaw - 3 Jaw, Steel, 60mm Btw Mount Hole Ctrs, 270mm Long, 110mm Wide, 110mm High, 30mm Groove, M24mm Fastener
Item #: 39388962
Brand: Samchully
Model #: SB40SB2
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 3mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (mm) | 1600.00 |
| Minimum Compatible Chuck Diameter (mm) | 1000.00 |
| Overall Height (mm) | 110.00 |
| Groove Width (mm) | 30.00 |
| Distance Between Mount Hole Centers (mm) | 60.00 |
| Jaw End Shape | Square |
| Fastener Size (mm) | M24 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 110.00 |
| Overall Length (mm) | 270.00 |
| Maximum External Chucking Diameter (mm) | 1600.00 |
| Minimum External Chucking Diameter (mm) | 330.00 |
