Brand: Widia / Part #: 3883455
Item #: 02774552
Brand: Widia
Model #: 3883455
Product Specifications
| Minimum Bore Diameter (mm) | 25.000 |
| Maximum Bore Depth (mm) | 60.00 |
| Toolholder Style | PWLNR |
| Tool Material | Steel |
| Shank Diameter (mm) | 20.0000 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 250.0000 |
| Compatible Insert Size Code | WN..060408 |
| Insert Holding Method | Lever |
| Compatible Insert Shape | Trigon |
| Insert Included | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Rake Angle | -14.000 |
| Lead Angle | 95.000 |
| Series | A-PWLN |
| Insert Inscribed Circle (Inch) | 3/8 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Compatible Insert Thickness (mm) | 4.76 |
| Multi-use Tool | Yes |

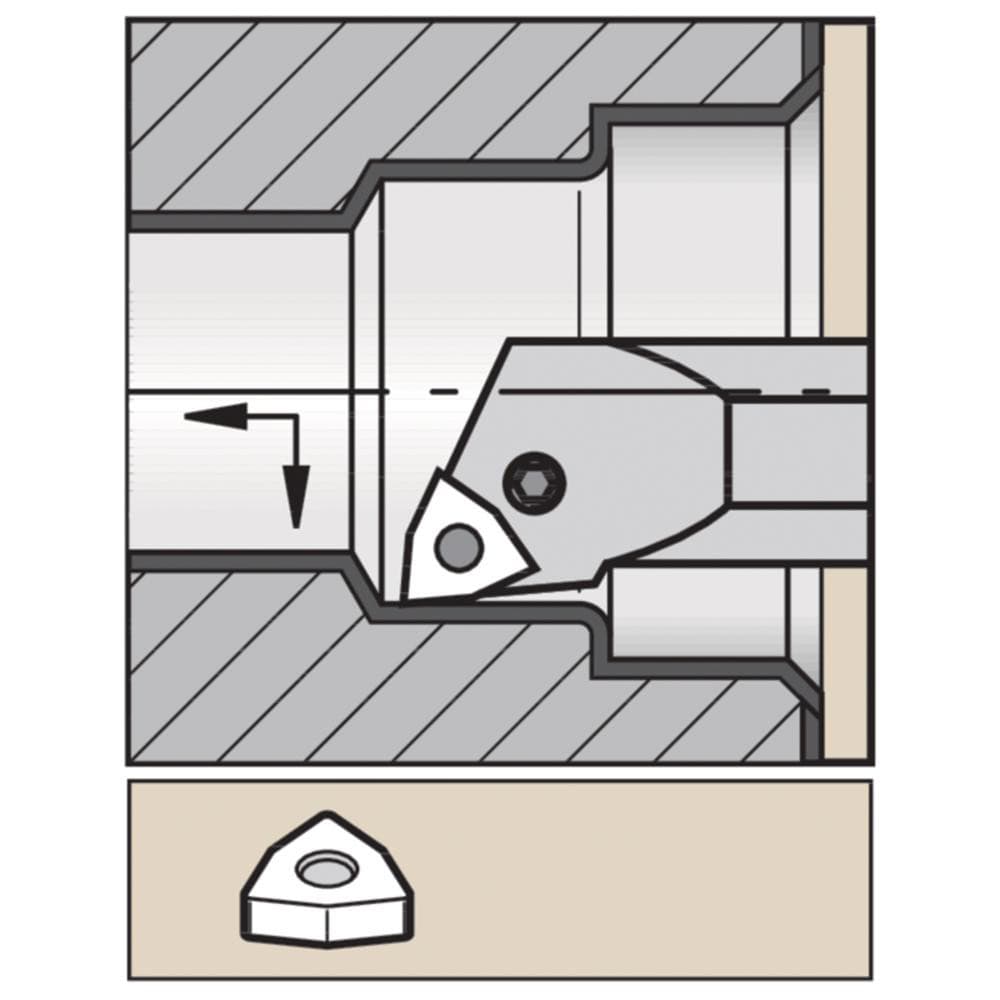

| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (mm) | 23.00 |
| Center to Cutting Edge (mm) | 13.00 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Hole Diameter (mm) | 4.00 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | A20SPWLNR06 |
| Radial Rake | -5 |
| Coolant Through | Yes |
