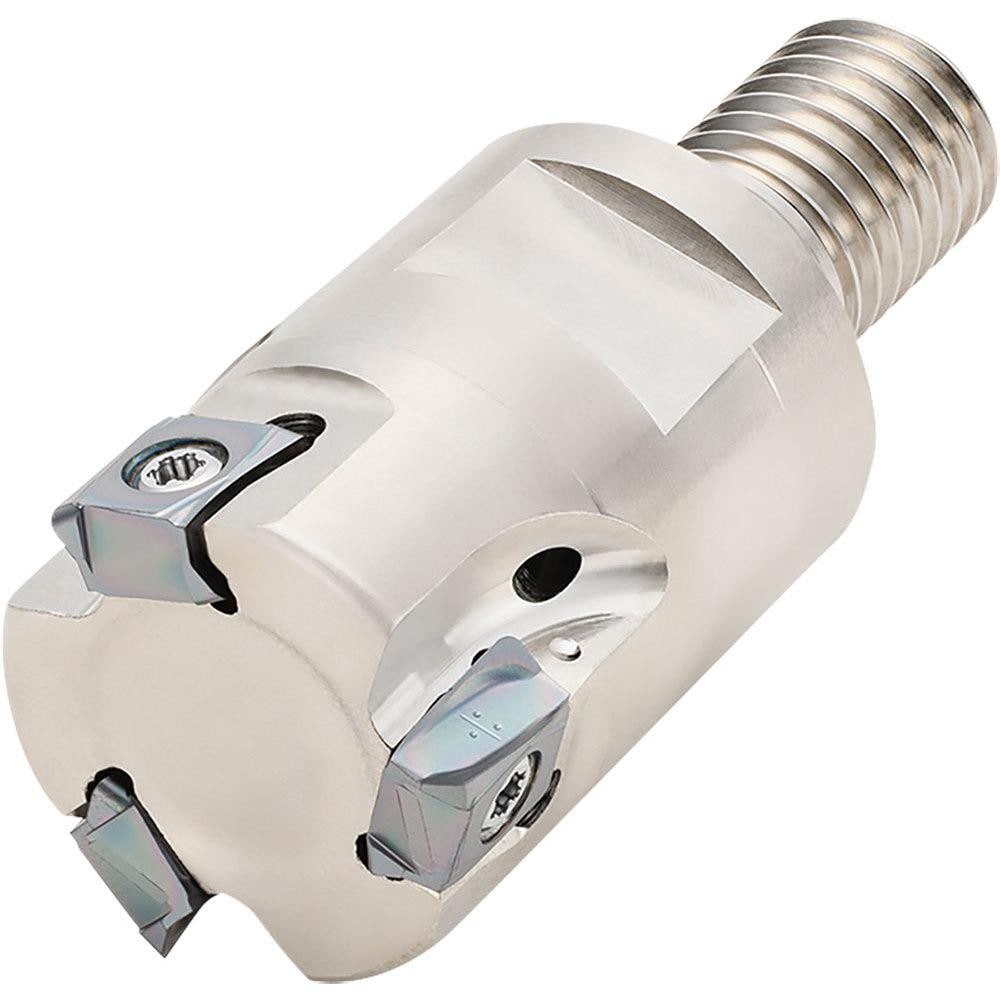

Modular Milling Cutting Unit Heads; System Size: M10; Cutting Direction: Right Hand; Cutting Diameter (Decimal Inch): 0.7874; Insert Style: MA90; Maximum Depth of Cut (Decimal Inch): 0.3150; Maximum Depth of Cut (mm): 8.00
Item #: 68878826
Brand: Kyocera
Model #: THN08710
Product Specifications
| System Size | M10 |
| Cutting Direction | Right Hand |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Insert Style | MA90 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 8.00 |
| Insert Holding Method | Screw |
| Through Coolant | Yes |
| Head Connection Size | 15 mm |
| Number of Cutter Inserts | 2 |
| Cutting Width (Decimal Inch) | 0.7874 |
| Head Length Projection (mm) | 30.00 |
| Depth Of Cut | 0.3150 |
| Head Length Projection (Decimal Inch) | 1.1811 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Head Length (Decimal Inch) | 1.1811 |
| Series | MA90 |
| UNSPSC Code | 23242106 |
| System Size | M10 |
| Cutting Direction | Right Hand |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Insert Style | MA90 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 8.00 |
| Insert Holding Method | Screw |
| Through Coolant | Yes |
| Head Connection Size | 15 mm |
| Number of Cutter Inserts | 2 |
| Cutting Width (Decimal Inch) | 0.7874 |
| Head Length Projection (mm) | 30.00 |
| Depth Of Cut | 0.3150 |
| Head Length Projection (Decimal Inch) | 1.1811 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Head Length (Decimal Inch) | 1.1811 |
| Series | MA90 |
| UNSPSC Code | 23242106 |
| MSC Part # | 68878826 |
| Mfr Part # | THN08710 |
| Country of Origin Country of Origin is subject to change | Japan |
