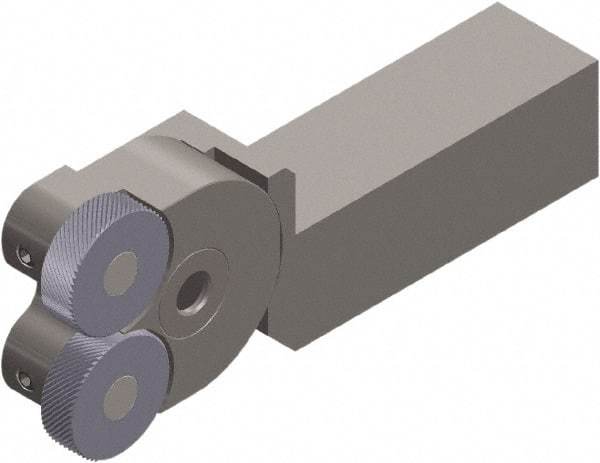

Made in USA - RH Cut, Diamond, 3/4" Wide x 3/4" High x 3" Long Square Shank, Up-To-Shoulder Bump Knurlers - 2 Knurls Required (Included), 1" Diam x 5/16" Wide Face, 5/16" Hole Diam, Series OT
Item #: 38293452
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Up-to-Shoulder bump knurlers are designed for knurling on the edge of the material. The knurl wheel is held with a pin instead of a supporting tab.
| Product Specifications | |
|---|---|
| Knurler Type | Up-To-Shoulder |
| Cutting Direction | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Shank Length (Inch) | 3 |
| Knurl Diameter (Inch) | 1 |
| Knurl Face Width (Inch) | 5/16 |
| Knurl Hole Diameter (Inch) | 5/16 |
| Number of Knurls Required | 2 |
| Knurl Series | OT |
| Modular | No |
| Includes Knurl Wheels | Yes |
| Pattern | Diamond |
| Knurl Patterns Included | Left-Hand Diagonal; Right-Hand Diagonal |
| Shank Shape | Square |
| Overall Length (Decimal Inch) | 5.2500 |
| Overall Length (Inch) | 5-1/4 |
