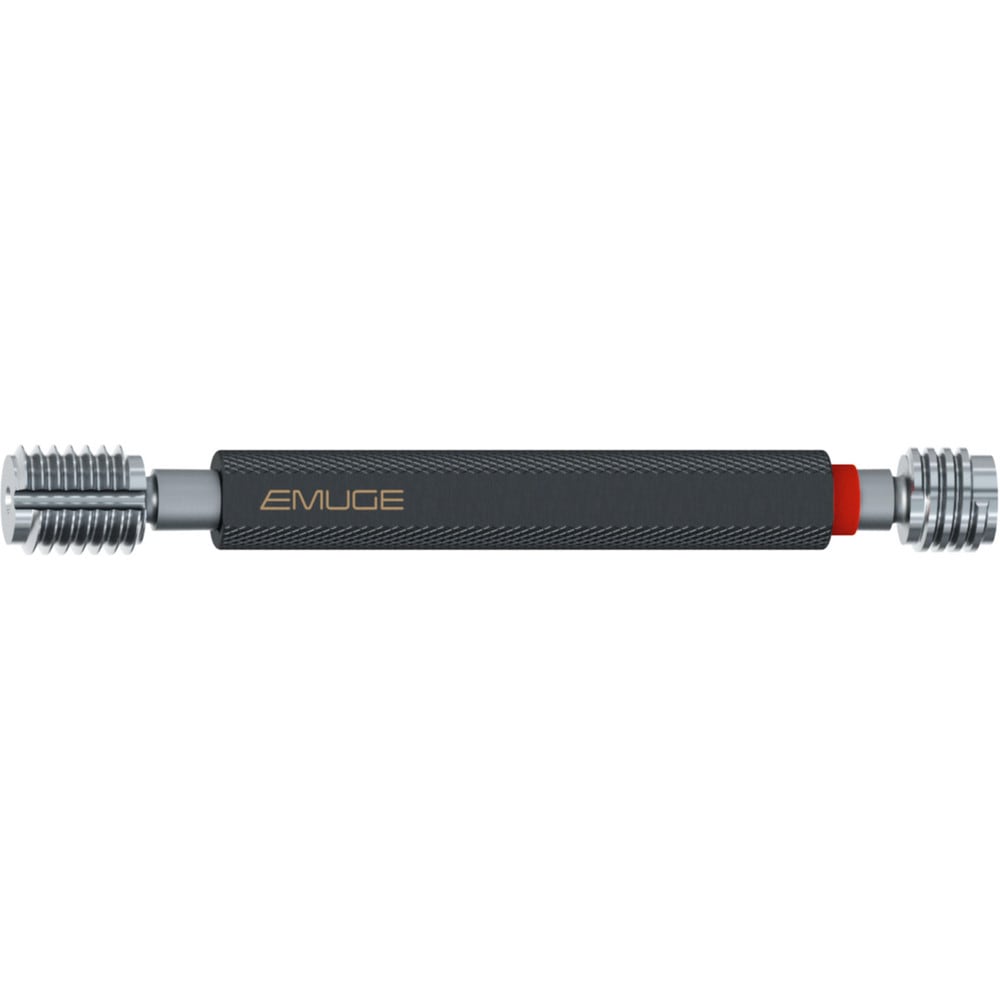

Plug Thread Go/No Go Gages; Go/No Go: Go, No Go; Thread Size: 3/8-24; Material: Steel; Classification: 3B; Go Pitch Diameter (Inch): 0.3479; Go Pitch Diameter (mm): 8.8370; No Go Pitch Diameter (mm): 8.9310; No Go Pitch Diameter (Decimal Inch): 0.35160
Item #: 02815264
Brand: Emuge
Model #: L0100160.5045
Product Specifications
| Go/No Go | Go; No Go |
| Thread Size | 3/8-24 |
| Material | Steel |
| Classification | 3B |
| Go Pitch Diameter (Inch) | 0.3479 |
| Go Pitch Diameter (mm) | 8.8370 |
| No Go Pitch Diameter (mm) | 8.9310 |
| No Go Pitch Diameter (Decimal Inch) | 0.35160 |
| Handle Size | 0 |
| Handle Included | Yes |
| Overall Length (Decimal Inch) | 3.2670 |
| Overall Length (mm) | 83.0000 |
| Thread Direction | Left Hand |
| Calibrated | Yes |
| Traceability Certification Included | Yes |
| Standards | NIST; Gauge dimensions according to ANSI/ASME B1.24; DIN2280 |
| Coating/Finish | Bright |
| Single Or Double End | Double |
| Thread Standard | UNF |
| UNSPSC Code | 41111619 |
