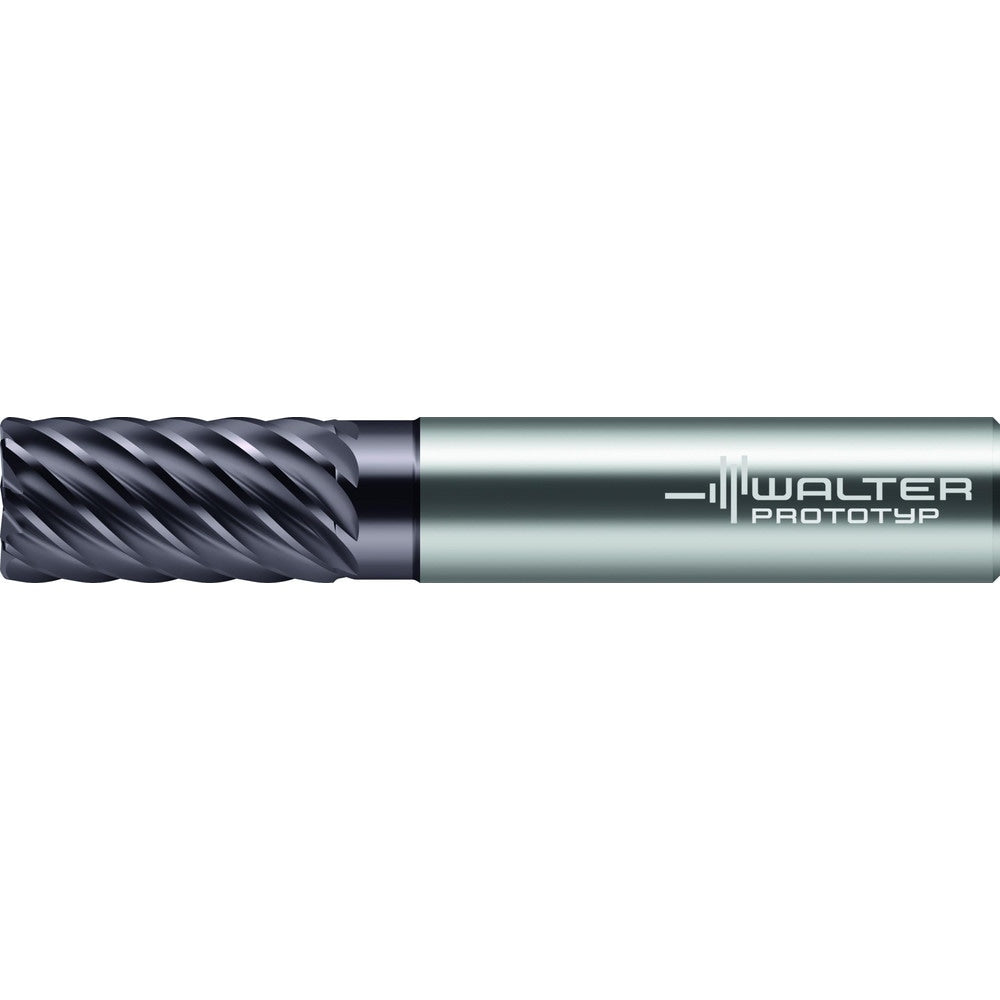

Square End Mill: 6.00 mm Dia, 26.00 mm LOC, 9 Flute, Solid Carbide
Item #: 07321854
Brand: Walter-Prototyp
Model #: 8414826
Product Specifications
| Mill Diameter (mm) | 6.00 |
| Mill Diameter (Decimal Inch) | 0.2362 |
| Number Of Flutes | 9 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 26.00 |
| Shank Diameter (mm) | 6.00 |
| Overall Length (mm) | 63.00 |
| Single Or Double End | Single |
| Coating/Finish Family | TiAlN |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 45 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Secondary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | S; K; M |
| Coating/Finish | TiAlN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Whistle Notch |
| Material Grade | Solid Carbide |
| Neck Diameter (mm) | 5.70 |
| Reach Length (Decimal Inch) | 1.0236 |
| Reach Length (mm) | 26.00 |
| Shank Diameter Tolerance | h6 |
| Series | MA230 |
| System Of Measurement | Metric |
| UNSPSC Code | 23241614 |
