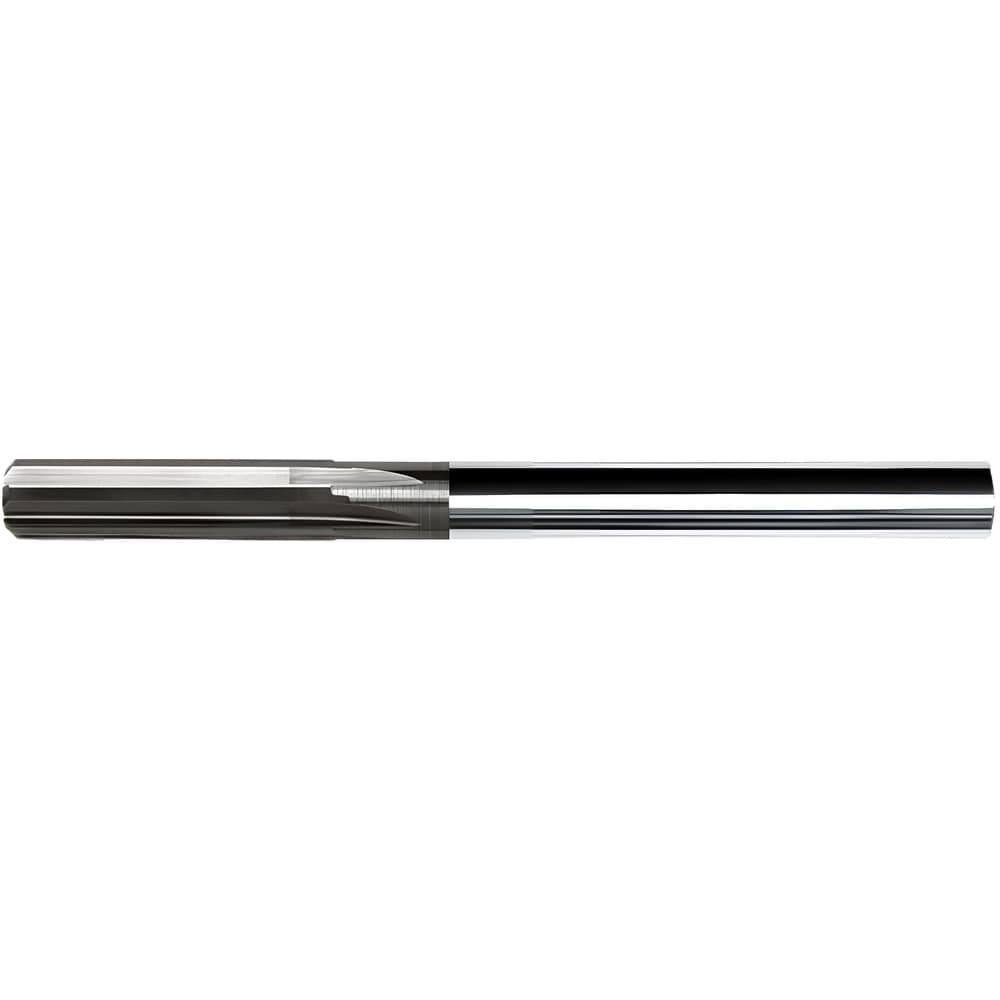

Chucking Reamer: 0.3120" Dia, 3-1/4" OAL, 1-1/8" Flute Length, Straight-Cylindrical Shank, Solid Carbide
Item #: 09192618
Brand: Internal Tool
Model #: 93-3120
Product Specifications
| Reamer Diameter Range (Decimal Inch) | 0.3000 - 0.3499 |
| Reamer Diameter (Decimal Inch) | 0.3120 |
| Tool Material | Solid Carbide |
| Flute Type | Straight |
| Coating/Finish | Bright/Uncoated |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Dowel Pin Reamer | No |
| Over/Under Size Reamer | No |
| Overall Length (Decimal Inch) | 3.2500 |
| Overall Length (Inch) | 3-1/4 |
| Number of Flutes | 6 |
| Shank Diameter (Decimal Inch) | 0.3120 |
| Flute Length (Inch) | 1-1/8 |
| Reamer Diameter Tolerance | +.0030 to -.0000 in |
| Series | 93 |
| Cutting Direction | Right Hand |
| Pilot Diameter (Decimal Inch) | 0.3120 |
| UNSPSC Code | 23241611 |
