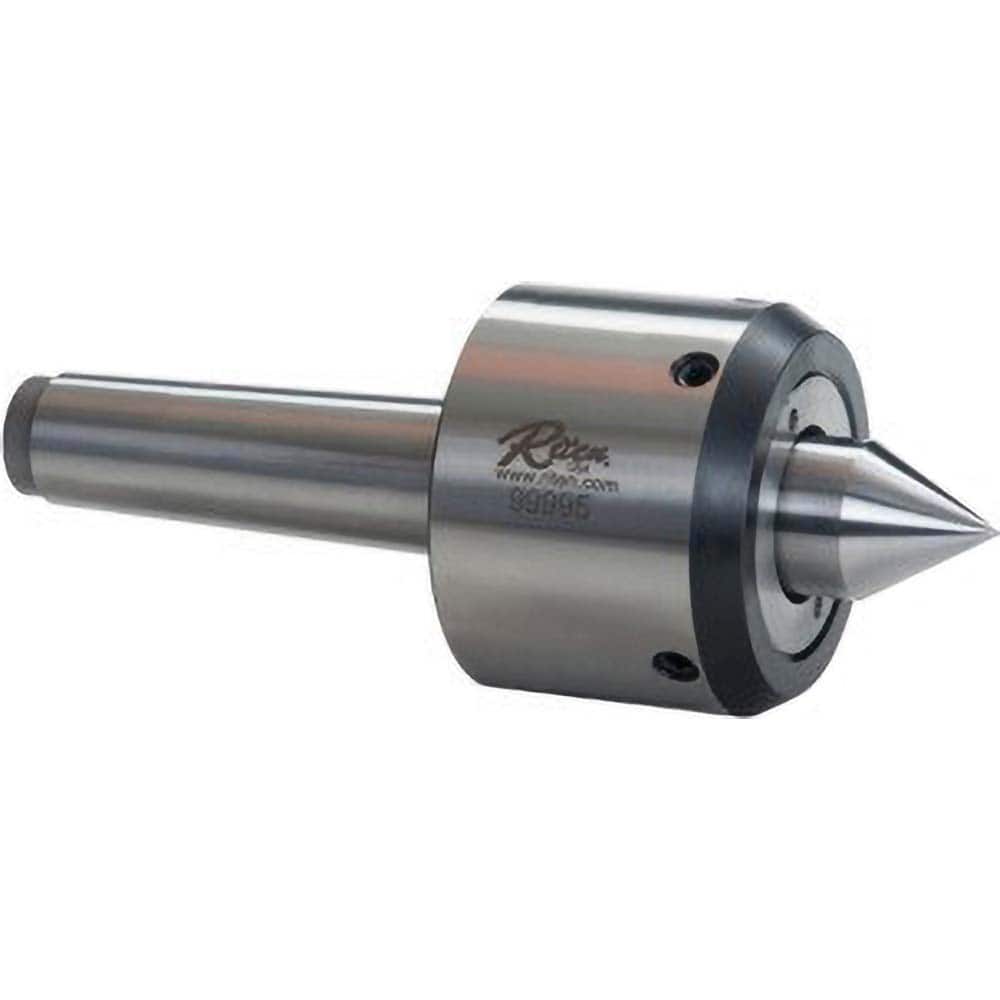

Riten - Live Centers; Shank Type: Morse Taper ; Taper Size: 4MT ; Maximum Workpiece Weight (Lb.): 3000.00 ; Point Style: Male ; Point Diameter (Decimal Inch): 1.6880 ; Point Length (Decimal Inch): 2.1200
Item #: 37478104
Brand: Riten
Model #: 99994
Product Specifications
Live Centers; Shank Type: Morse Taper ; Taper Size: 4MT ; Maximum Workpiece Weight (Lb.): 3000.00 ; Point Style: Male ; Point Diameter (Decimal Inch): 1.6880 ; Point Length (Decimal Inch): 2.1200
| Shank Type | Morse Taper |
| Taper Size | 4MT |
| Maximum Workpiece Weight (Lb.) | 3000.00 |
| Point Style | Male |
| Point Diameter (Decimal Inch) | 1.6880 |
| Point Length (Decimal Inch) | 2.1200 |
| Accuracy (Decimal Inch) | 0.000100 |
| Head Diameter (Decimal Inch) | 4.3880 |
| Head Length (Decimal Inch) | 3.4040 |
| Gage Line Clearance (Decimal Inch) | 0.5740 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Maximum RPM | 3000.000 |
| Material | Steel |
| Carbide-Tipped | No |
