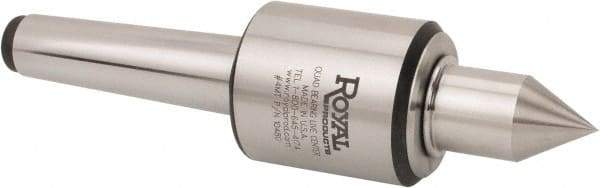

Royal Products - MT4 Morse Taper, 2.45" Head Diam Live Center - 5,000 Max RPM, 2.78" Head Length, 1-1/4" Point Diam, 2.35" Point Len, 1,230 Lb Max Workpc, Long Point
Item #: 37315025
Brand: Royal Products
Model #: 10480
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Morse Taper |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 1230.00 |
| Point Style | Long |
| Point Diameter (Inch) | 1-1/4 |
| Point Diameter (Decimal Inch) | 1.2500 |
| Point Length (Decimal Inch) | 2.3500 |
| Thrust Load (Lb.) | 2150.00 |
| Radial Load (Lb.) | 1230.00 |
| Head Diameter (Decimal Inch) | 2.4500 |
| Head Length (Decimal Inch) | 2.7800 |
| Maximum RPM | 5000 |
| Carbide-Tipped | No |
