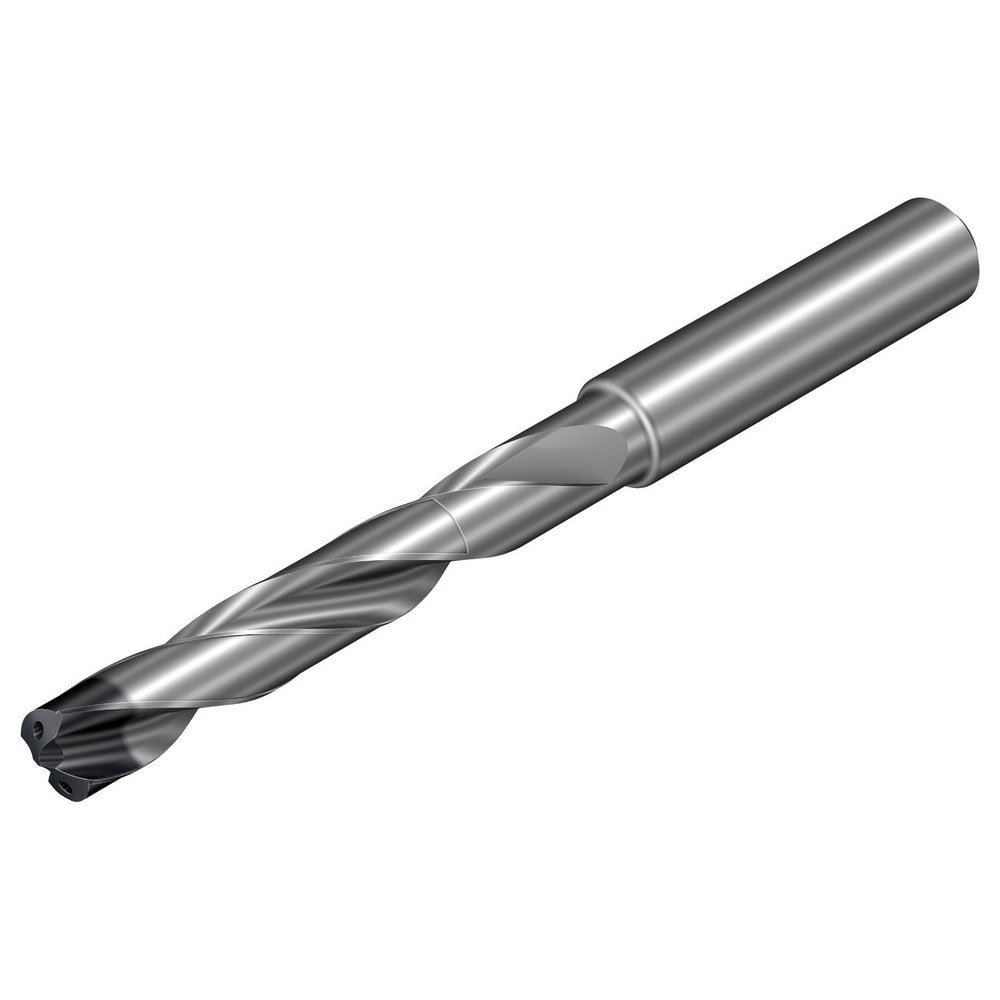

Screw Machine Length Drill Bit: 5.50 mm Dia, 140 deg Point, Solid Carbide
Item #: 01160589
Brand: Sandvik Coromant
Model #: 8420855
Product Specifications
| Drill Bit Size (mm) | 5.50 |
| Drill Bit Size (Decimal Inch) | 0.2165 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlSiN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | High-Temp Alloy |
| Point Type | Split Point |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Shank Diameter (mm) | 6.00 |
| Series | CoroDrill 860 |
| Proprietary Coating/Finish | TiAlSiN |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.6890 |
| Maximum Drilling Depth (mm) | 17.50 |
| Drill Point Length (mm) | 1.00 |
| Drill Point Length (Decimal Inch) | 0.0394 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Flute Length (Decimal Inch) | 1.1024 |
| Flute Length (mm) | 28.00 |
| Drill Bit Grade | S2BM |
| Specification Number | DIN 6535HA |
| Specification Designation | DIN |
| UNSPSC Code | 23291500 |
