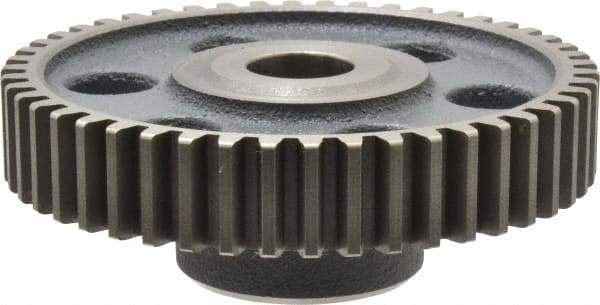

Boston Gear - 12 Pitch, 4" Pitch Diam, 48 Tooth Spur Gear - 3/4" Face Width, 3/4" Bore Diam, 1-3/4" Hub Diam, 14.5° Pressure Angle, Steel
Item #: 36682227
Brand: Boston Gear
Model #: ND48
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Spur Gear |
| Number of Teeth | 48 |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Pitch Diameter (Decimal Inch) | 4.0000 |
| Bore Diameter (Decimal Inch) | 0.7500 |
| Material | Steel |
| Face Width (Decimal Inch) | 0.7500 |
| Pressure Angle | 14.5 |
| PSC Code | 3020 |
