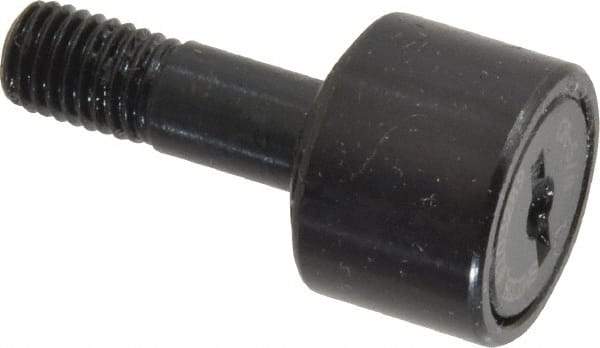

Accurate Bushing - 5/8" Roller Diam x 7/16" Width, 1/4" Stud Diam x 3/4" Length, Stud Cam Follower - Steel, 5/16" Thread Length, 1/4-28 Thread, 1-3/16" OAL, 1,320 Lb Dynamic Cap, 1,250 Lb Static Cap
Item #: 36670412
Brand: Accurate Bushing
Model #: CR-5/8
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Stud Cam Follower |
| Roller Diameter (Inch) | 5/8 |
| Roller Width (Decimal Inch) | 0.4375 |
| Stud Diameter (Decimal Inch) | 0.2500 |
| Dynamic Load Capacity (Lb.) | 1320 |
| Static Load Capacity (Pounds) | 1250.00 |
| Length (Decimal Inch) | 1.188 |
| Thread Size | 1/4-28 |
| Material | Steel |
| Stud Length (Inch) | 3/4 |
| Thread Length (Inch) | 5/16 |
