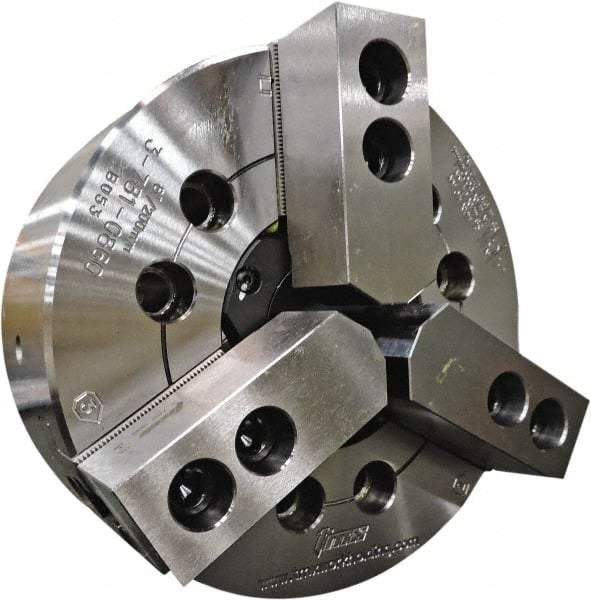

TMX - 3 Jaws, 6" Chuck Diam, A2-5 Mount, 2.0866" Through Hole, Drawtube, Hydraulic Power Lathe Chuck - 0.5118" to 6.6535" Jaw Capacity, 6,000 RPM
Item #: 36306975
Brand: TMX
Model #: 3-771-0650
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (Inch) | 6 |
| Chuck Diameter (Decimal Inch) | 6.0000 |
| Number of Jaws | 3 |
| Mount | A2-5 |
| Through-Hole Diameter (Decimal Inch) | 2.0866 |
| Chuck Actuation Style | Drawtube |
| Operation Type | Hydraulic |
| Minimum Jaw Capacity (Decimal Inch) | 0.5118 |
| Maximum Jaw Capacity (Decimal Inch) | 6.6535 |
| Jaw Stroke Diameter (Decimal Inch) | 0.2165 |
| Maximum Static Gripping Force (lbf) | 14167.00 |
| Moment of Inertia (lb/sq ft) | 0.05 |
| Maximum RPM | 6000 |
