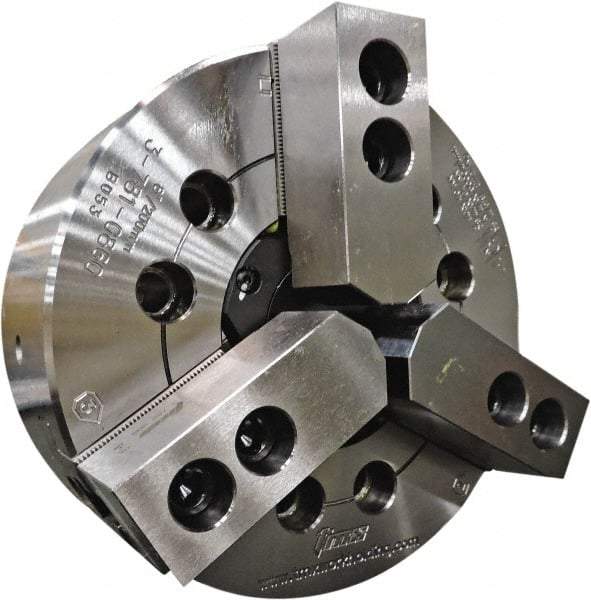

TMX - 3 Jaws, 5" Chuck Diam, Plain Back Mount, 1.2992" Through Hole, Drawtube, Hydraulic Power Lathe Chuck - 0.3937" to 5.315" Jaw Capacity, 7,000 RPM
Item #: 36306942
Brand: TMX
Model #: 3-780-0500
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (Inch) | 5 |
| Chuck Diameter (Decimal Inch) | 5.0000 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 1.2992 |
| Chuck Actuation Style | Drawtube |
| Operation Type | Hydraulic |
| Minimum Jaw Capacity (Decimal Inch) | 0.3937 |
| Maximum Jaw Capacity (Decimal Inch) | 5.3150 |
| Jaw Stroke Diameter (Decimal Inch) | 0.2126 |
| Maximum Static Gripping Force (lbf) | 8093.00 |
| Moment of Inertia (lb/sq ft) | 0.01 |
| Maximum RPM | 7000 |
