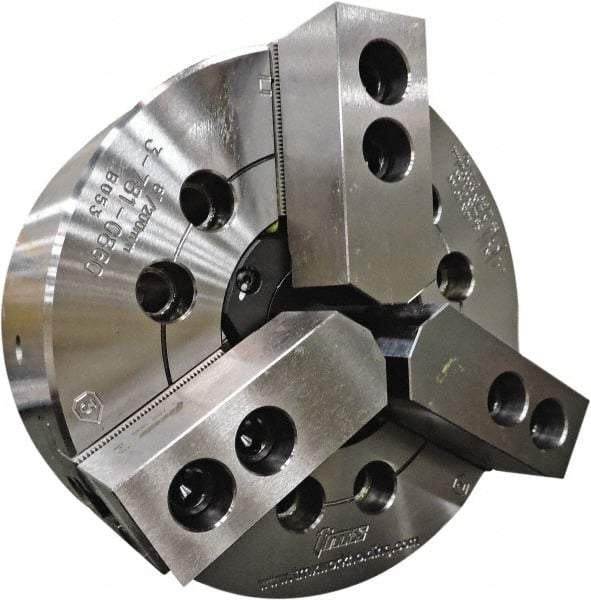

TMX - 3 Jaws, 10" Chuck Diam, A2-6 Mount, 3.0315" Through Hole, Drawtube, Hydraulic Power Lathe Chuck - 1.2205" to 10" Jaw Capacity, 4,200 RPM
Item #: 36306868
Brand: TMX
Model #: 3-781-1060
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (Inch) | 10 |
| Chuck Diameter (Decimal Inch) | 10.0000 |
| Number of Jaws | 3 |
| Mount | A2-6 |
| Through-Hole Diameter (Decimal Inch) | 3.0315 |
| Chuck Actuation Style | Drawtube |
| Operation Type | Hydraulic |
| Minimum Jaw Capacity (Decimal Inch) | 1.2205 |
| Maximum Jaw Capacity (Decimal Inch) | 10.0000 |
| Jaw Stroke Diameter (Decimal Inch) | 0.3346 |
| Maximum Static Gripping Force (lbf) | 28088.00 |
| Moment of Inertia (lb/sq ft) | 0.26 |
| Maximum RPM | 4200 |
