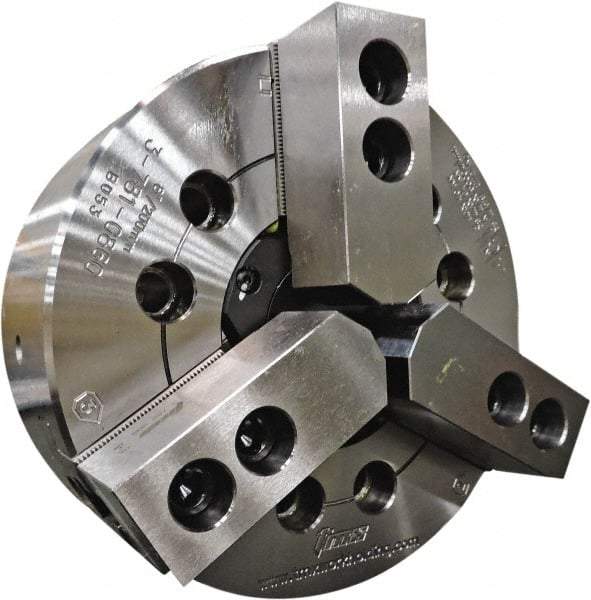

TMX - 3 Jaws, 15" Chuck Diam, A2-11 Mount, 4.6457" Through Hole, Drawtube, Hydraulic Power Lathe Chuck - 1.1811" to 15" Jaw Capacity, 2,500 RPM
Item #: 36306835
Brand: TMX
Model #: 3-781-1511
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (Inch) | 15 |
| Chuck Diameter (Decimal Inch) | 15.0000 |
| Number of Jaws | 3 |
| Mount | A2-11 |
| Through-Hole Diameter (Decimal Inch) | 4.6457 |
| Chuck Actuation Style | Drawtube |
| Operation Type | Hydraulic |
| Minimum Jaw Capacity (Decimal Inch) | 1.1811 |
| Maximum Jaw Capacity (Decimal Inch) | 15.0000 |
| Jaw Stroke Diameter (Decimal Inch) | 0.4173 |
| Maximum Static Gripping Force (lbf) | 40467.00 |
| Moment of Inertia (lb/sq ft) | 1.95 |
| Maximum RPM | 2500 |
