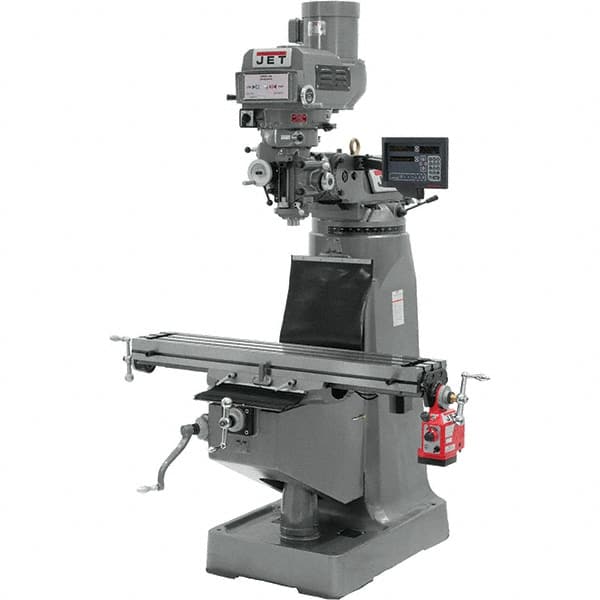

Jet - 9 x 49" 3 hp 230/460V Variable Speed Pulley Control 3 Phase Knee Milling Machine
Item #: 35971415
Brand: Jet
Model #: 690087
Product Specifications
| Spindle Speed Control | Variable Speed Pulley |
| Table Length (Inch) | 49 |
| Table Width (Inch) | 9 |
| Horsepower (HP) | 3.00 |
| Phase | 3 |
| Voltage | 230/460 |
| Longitudinal Travel (Decimal Inch) | 34.0000 |
| Cross Travel (Decimal Inch) | 12.0000 |
| Knee Travel (Decimal Inch) | 14.5000 |
| Minimum Spindle Speed (RPM) | 60.00 |
| Maximum Spindle Speed (RPM) | 4200.00 |
| Includes | Newall DP700 DRO; X-Axis Power Table Feed |
| Spindle Taper Size | R8 |
| Number of Spindle Speeds | Variable |
| Spindle Travel Length (Inch) | 5 |
| Quill Diameter (Inch) | 3-3/8 |
| Spindle Power Feed Rate Per Minute (in/rev) | 0.0015; 0.0030; 0.0060 |
| Maximum Spindle to Table Distance (Inch) | 17-1/2 |
| Minimum Spindle to Column Distance (Inch) | 4-1/2 |
| Maximum Spindle To Column Distance (Inch) | 19 |
| Table Load Capacity (Lb.) | 660.00 |
| Number of T-Slots | 3 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Forward Head Tilt (Degrees) | 45.00 |
| Backward Head Tilt (Degrees) | 45.00 |
| Ram Travel Length (Inch) | 14-1/2 |
| Overall Length (Inch) | 65-1/2 |
| Overall Height (Inch) | 85 |
| Overall Depth (Inch) | 63 |
