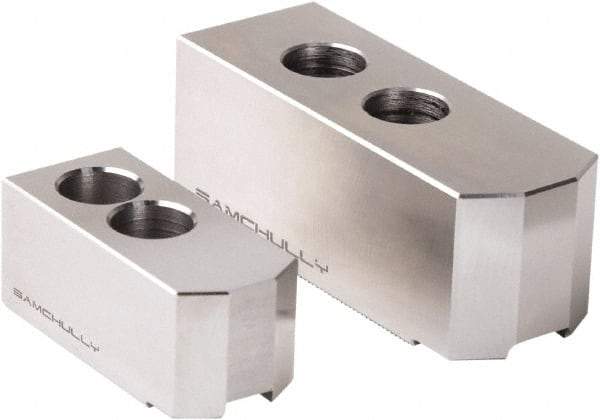

Samchully - 450mm Max Chuck Capacity, 1.5mm x 60° Serrated Interface, Square Soft Lathe Chuck Jaw - 3 Jaw, Steel, 43mm Btw Mount Hole Ctrs, 135mm Long, 50mm Wide, 60mm High, 25.5mm Groove, M20mm Fastener
Item #: 35929918
Brand: Samchully
Model #: SB15N1
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (mm) | 450.00 |
| Minimum Compatible Chuck Diameter (mm) | 381.00 |
| Overall Height (mm) | 60.00 |
| Groove Width (mm) | 25.50 |
| Distance Between Mount Hole Centers (mm) | 43.00 |
| Jaw End Shape | Square |
| Fastener Size (mm) | M20 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 50.00 |
| Overall Length (mm) | 135.00 |
| Maximum External Chucking Diameter (mm) | 450.00 |
| Minimum External Chucking Diameter (mm) | 71.00 |
