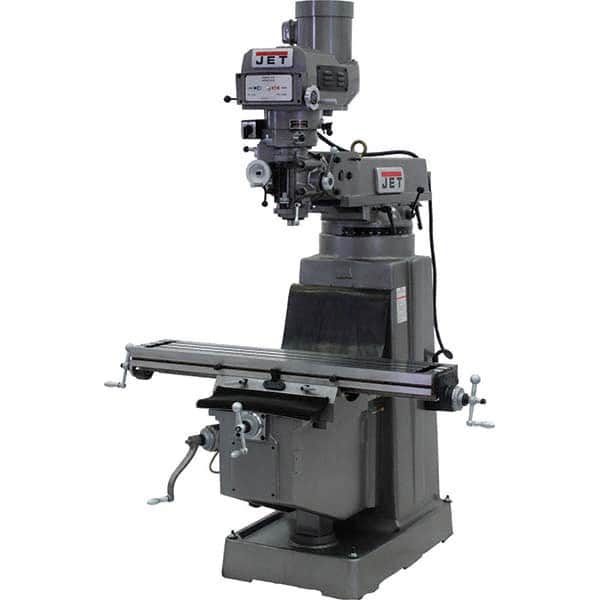

Knee Milling Machine: 0.125″, Electronic Variable Speed Control, 3 Phase 60 to 4,500 RPM, R8 Spindle Taper
Item #: 35886282
Brand: Jet
Model #: 692206
Product Specifications
| Minimum Spindle to Column Distance (Decimal Inch) | 0.1250 |
| Minimum Spindle to Column Distance (Inch) | 1/8 in |
| Minimum Spindle to Column Distance (mm) | 0.88 |
| Minimum Spindle Speed | 60 RPM |
| Maximum Spindle Speed | 4500 RPM |
| Forward Head Tilt (Degrees) | 45 |
| Phase | 3 |
| Left-Hand Head Tilt (Degrees) | 90 |
| Left-hand Head Tilt | 90.0 ? |
| Right-Hand Head Tilt (Degrees) | 45 |
| Right-hand Head Tilt | 45.0 ? |
| Cross Travel (Decimal Inch) | 12.0000 |
| Cross Travel | 16.0 in |
| Longitudinal Travel | 35.3333 in |
| Longitudinal Travel (Decimal Inch) | 35.3333 |
| Knee Travel (Decimal Inch) | 16.0000 |
| Knee Travel | 16.125 in |
| Voltage | 230 |
| Table Load Capacity (kg) | 3.00 |
| Table Length (Inch) | 10 |
| Table Width (Inch) | 50 |
| Ram Turret Swivel (Degrees) | 3 |
| Ram Travel Length (Decimal Inch) | 15.8750 |
| Ram Travel Length (Inch) | 15-7/8 |
| Spindle Speed Control | Electronic Variable Speed |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Travel Length (Inch) | 5 |
| Overall Height (Decimal Inch) | 87.0000 |
| Overall Height (Inch) | 87 |
| Overall Length (Inch) | 66 |
| Overall Length (Decimal Inch) | 66.0000 |
| Overall Depth (Inch) | 63 |
| Overall Depth (Inch) | 63.0000 |
| Includes | CNC Package ACU-RITE MILLPWR G2 |
| Maximum Spindle To Column Distance (mm) | 840.00 |
 | |
| MSC Part # | 35886282 |
| Mfr Part # | 692206 |
| Country of OriginCountry of Origin is subject to change | Taiwan |
