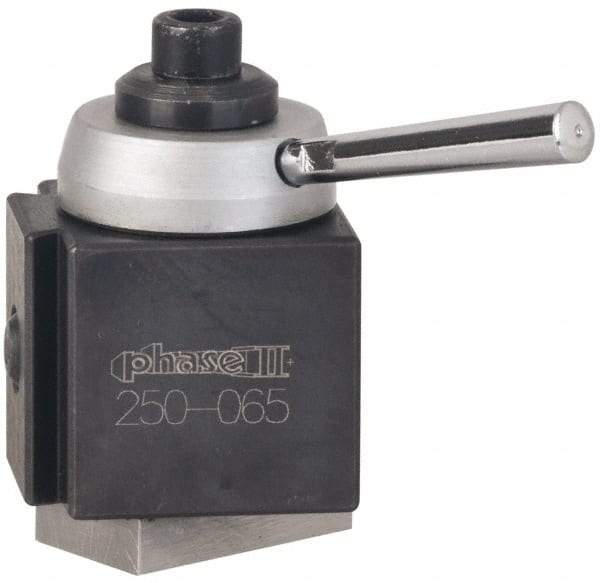

Phase II - 5 to 8 Inch Lathe Swing, Piston Type Quick Change Tool Post - Series 250, 5/8 to 1-1/8 Inch Centerline Height Range, 1-1/2 Inch Overall Height
Item #: 35618263
Brand: Phase II
Model #: 250-065
Exact Tooling IR#: 04
Features and Benefits
The clamping mechanism is a piston that pushes out from the center of the dovetail when the clamping lever on the tool post is engaged.
| Product Specifications | |
|---|---|
| Type | Quick Change Tool Post - Piston Type |
| Series | 250 |
| Lathe Swing (Inch) | 5 to 8 |
| Lathe Swing (Decimal Inch) | 7.9000 |
| Through Coolant | No |
| Base Width (Inch) | 1-3/4 |
| Bolt Hole Diameter (Inch) | 3/8 |
| Overall Height (Inch) | 1-1/2 |
| Minimum Centerline Height (Inch) | 5/8 |
| Maximum Centerline Height (Inch) | 1-1/8 |
| Body Height (Inch) | 1-1/2 |
