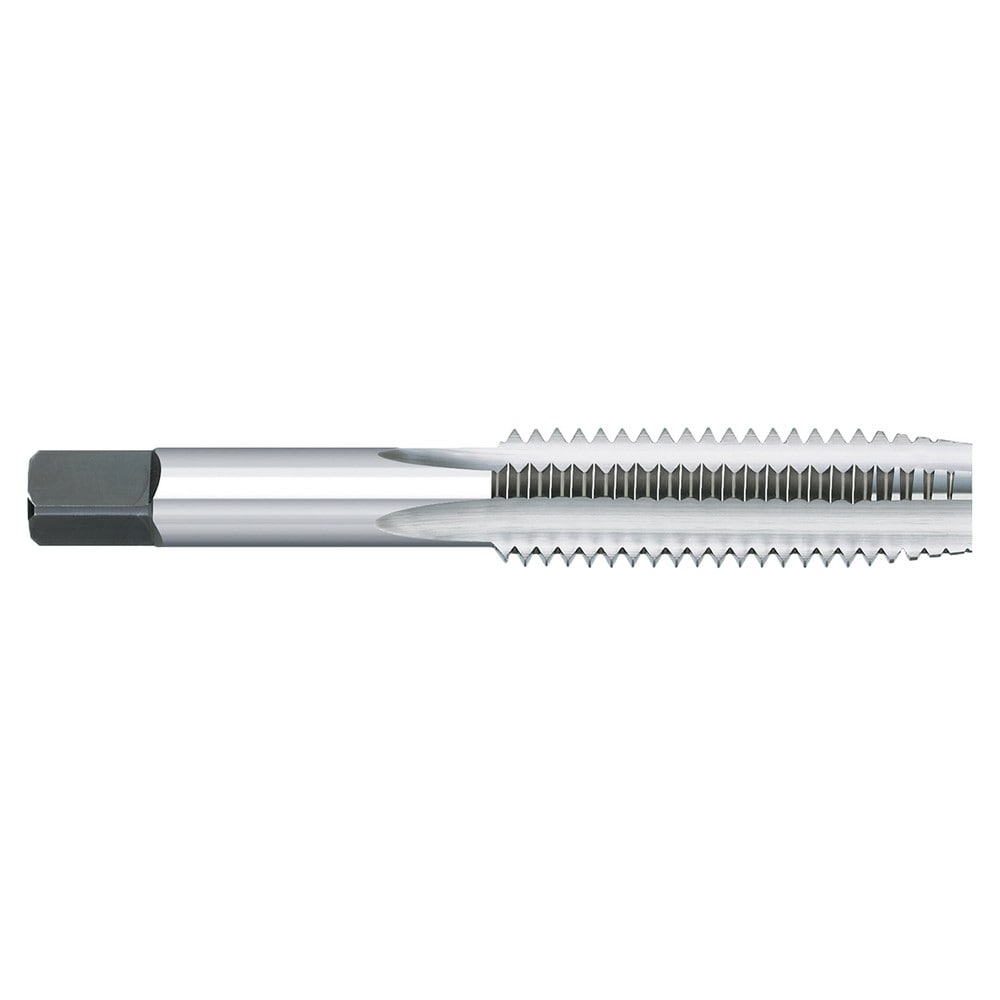

Brand: Titan USA / Part #: TT82970
Item #: 87750915
Brand: Titan USA
Model #: TT82970
Product Specifications
| Thread Size (Inch) | 3/4-10 |
| Thread Limit | H3 |
| Class Of Fit | 2B/3B |
| Number Of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 10 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UNC |
| Overall Length (Inch) | 4-1/4 |
| Thread Pitch (Decimal Inch) | 0.1000 |
| Overall Length (Decimal Inch) | 4.2500 |
| Thread Length (Decimal Inch) | 2.0000 |
| Thread Length (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 0.5900 |
| Square Length (Inch) | 11/16 |
| Square Size (Decimal Inch) | 0.4420 |
| Series | General Purpose Taps - High Speed Steel - Hand Taps - Left Hand |
