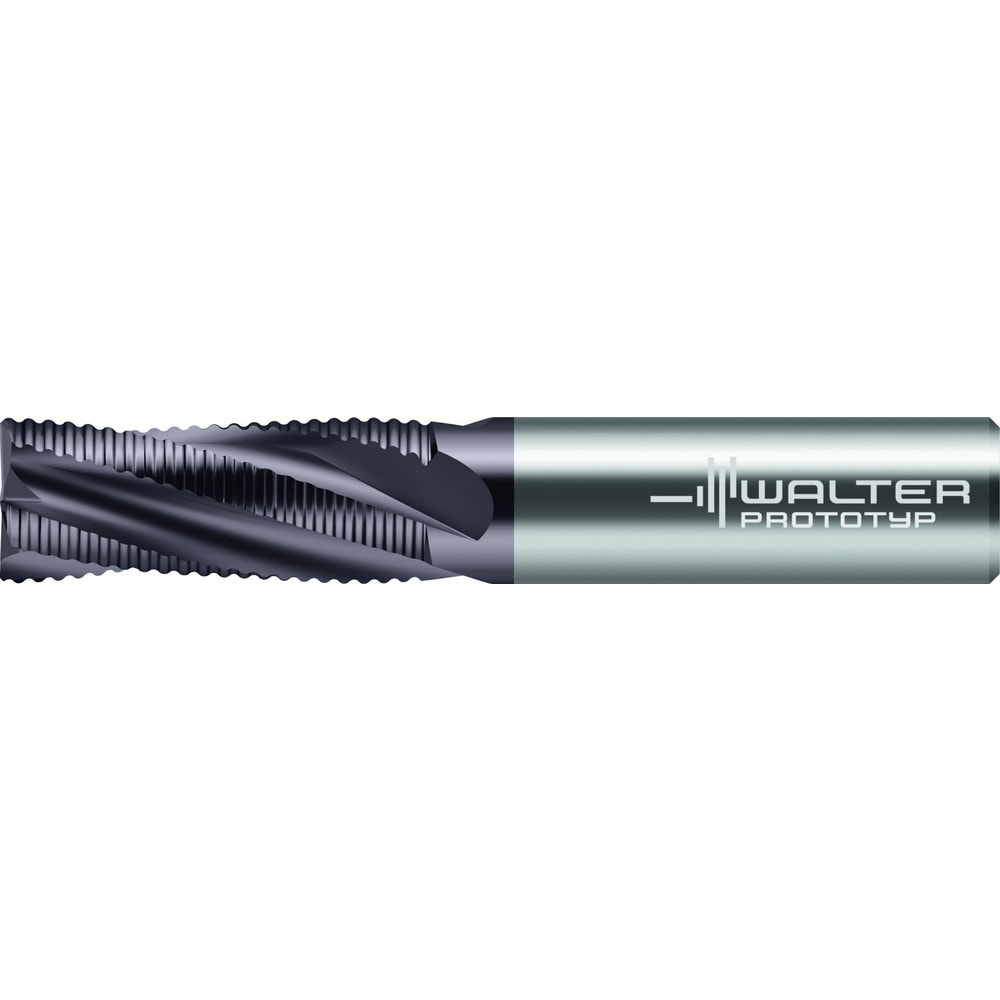

Roughing End Mill: 3/8" Dia, 4 Flute, Single End, Solid Carbide, Chipbreaker
Item #: 06983472
Brand: Walter-Prototyp
Model #: 8416757
Product Specifications
| Mill Diameter (Fractional Inch) | 3/8 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut | 1-1/8 |
| Coating/Finish | TiAlN/THL |
| Shank Diameter (Inch) | 3/8 |
| Centercutting | Yes |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Shank Type | Straight-Cylindrical |
| Extended Reach | No |
| Variable Helix | No |
| Chipbreaker | Yes |
| Material Grade | Solid Carbide |
| Single Or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Shank Diameter Tolerance | h6 |
| Reach Length (Decimal Inch) | 1.1250 |
| Reach Length (mm) | 28.58 |
| Series | MA320.A-4 |
| UNSPSC Code | 23241614 |
