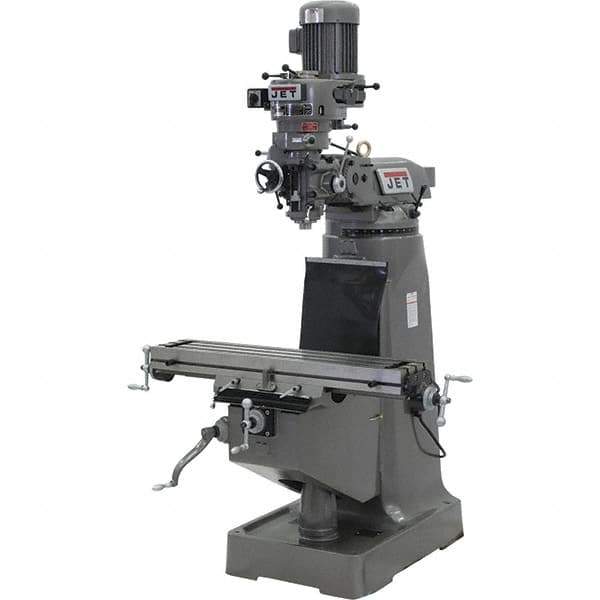

Jet - 9" Table Width x 42" Table Length, Step Pulley Control, 1 Phase Knee Milling Machine - 2 hp
Item #: 35294545
Brand: Jet
Model #: 692195
Exact Tooling IR#: 04
Features and Benefits
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. They commonly feature 8 or 16 fixed speeds.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase lines.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Step Pulley |
| Table Length (Inch) | 42 |
| Table Width (Inch) | 9 |
| Phase | 1 |
| Longitudinal Travel (Decimal Inch) | 23.8750 |
| Cross Travel (Decimal Inch) | 12.5000 |
| Knee Travel (Decimal Inch) | 14.5000 |
| Number of Spindle Speeds | 8 |
| Maximum Spindle Speed (RPM) | 2720.00 |
| Minimum Spindle Speed (RPM) | 80.00 |
| Includes | Newall DP500 DRO; X and Y-Axis Powerfeeds |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Quill Diameter (Inch) | 3-3/8 |
| Maximum Spindle to Table Distance (Decimal Inch) | 17.5000 |
| Number of T-Slots | 3 |
| Horsepower (HP) | 2.00 |
| Voltage | 115/230 |
| Warranty | 2 Year |
