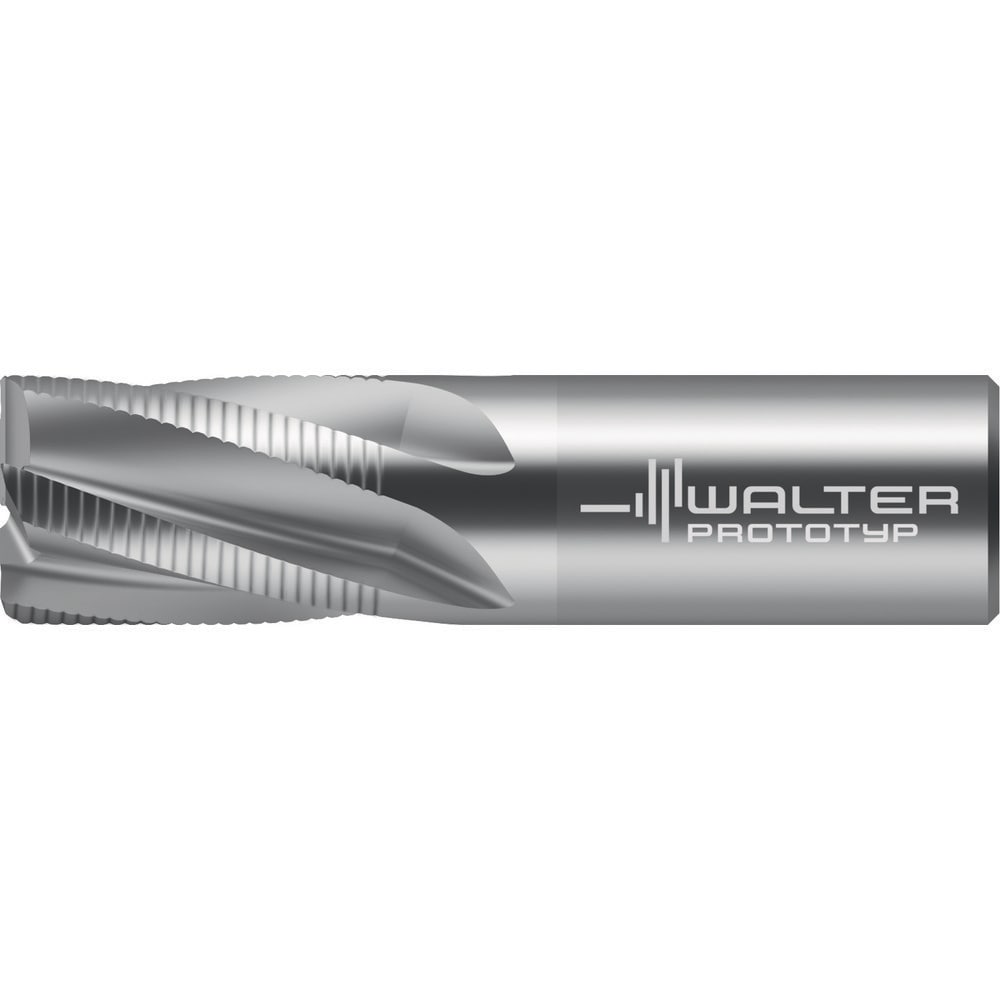

Roughing End Mill: 1" Dia, 5 Flute, Single End, Solid Carbide, Chipbreaker
Item #: 07005499
Brand: Walter-Prototyp
Model #: 8416748
Product Specifications
| Mill Diameter (Fractional Inch) | 1 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut | 2-1/4 |
| Coating/Finish | Bright/Uncoated |
| Shank Diameter (Inch) | 1 |
| Centercutting | Yes |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Shank Type | Straight-Cylindrical |
| Extended Reach | No |
| Variable Helix | No |
| Chipbreaker | Yes |
| Material Grade | Solid Carbide |
| Single Or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Shank Diameter Tolerance | h6 |
| Reach Length (Decimal Inch) | 2.2500 |
| Reach Length (mm) | 57.15 |
| Series | MA320.A-5 |
| UNSPSC Code | 23241614 |
