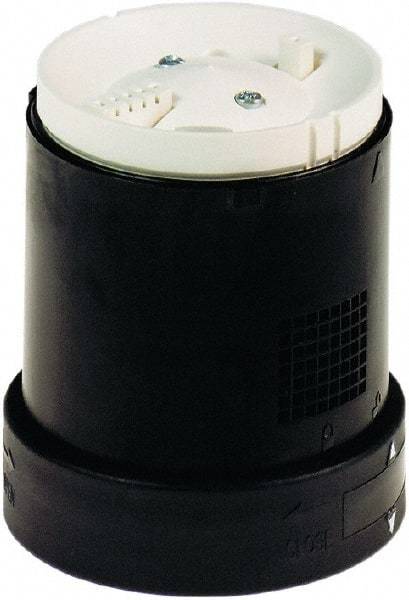

Schneider Electric - 70 to 90 dB at 1m, 120 to 230 VAC, Buzzer - 25 Milliamp, IP65, IP66 Ingress Rating, 4X NEMA Rated, 70mm Wide x 70mm Deep x 63mm High
Item #: 33942319
Brand: Schneider Electric
Model #: XVBC9M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Siren/Alarm Type | Buzzer |
| Noise Level | 70-90 dB @ 1 meter |
| Maximum Adjustable Output (dB) | 90 |
| Minimum Adjustable Output (dB) | 70 |
| Voltage | 120-230 VAC |
| Mounting Type | Pipe Mount |
| NEMA Rating | 4X |
| Ingress Protection Rating | IP65; IP66 |
| Amperage (mA) | 25 |
| Overall Width (mm) | 70 |
| Overall Height (mm) | 63 |
| Overall Depth (mm) | 70 |
| Maximum Operating Temperature (F) | 122 |
| Minimum Operating Temperature (F) | -13 |
| Standards Met | CCC; CSA C22.2 No. 14; EN/IEC 60947-5-1; GOST; IEC 60529; UL 508 |
