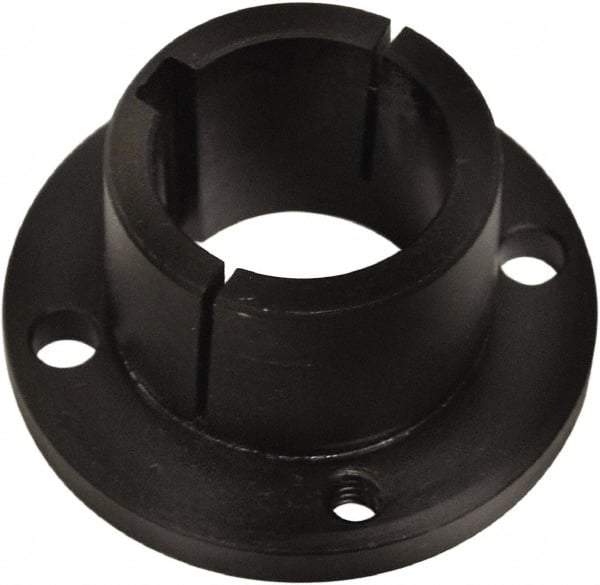

U.S. Tsubaki - 2-15/16" Bore, 19.05" Wide Keyway, 3/8" Deep Keyway, S1 Sprocket Bushing - 4.418 to 6-3/8" Outside Diam
Item #: 33928466
Brand: U.S. Tsubaki
Model #: S1-2R
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | S1 |
| Bore Size (Inch) | 2-15/16 |
| Bore Size (mm) | 74.61 |
| Keyway Depth (Inch) | 3/8 |
| Keyway Depth (mm) | 9.5 |
| Keyway Width (mm) | 19.050 |
| Keyway Width (Inch) | 3/4 |
| Maximum Outside Diameter (Decimal Inch) | 6.3750 |
| Minimum Outside Diameter (Decimal Inch) | 4.4180 |
| PSC Code | 3020 |
