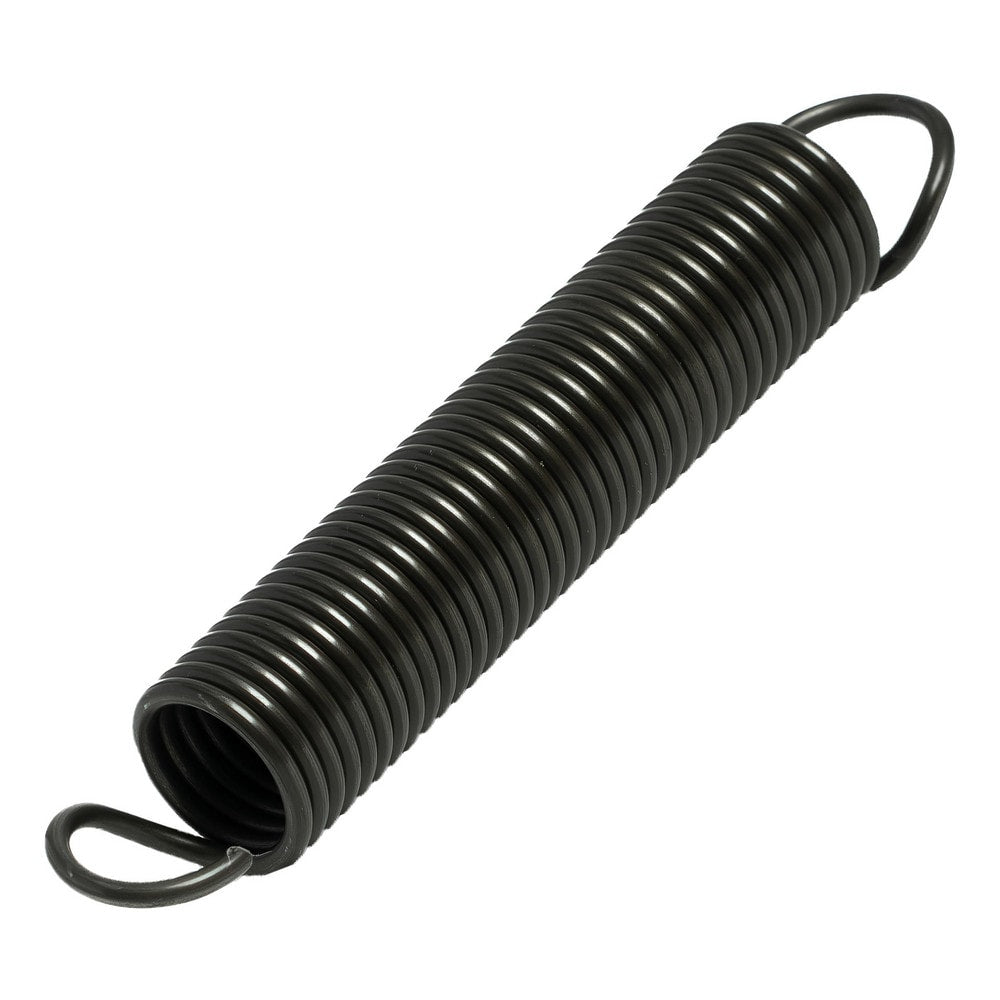

Extension Springs; End Type: Full Twist Loop; Outside Diameter (mm): 15.0000; Spring Rate: 8.0000; Material: Music Wire; Overall Length (Decimal Inch): 7.8540
Item #: 02992816
Brand: Associated Spring Raymond
Model #: MCEM1502200195M
Product Specifications
| End Type | Full Twist Loop |
| Outside Diameter (mm) | 15.0000 |
| Spring Rate | 8.0000 |
| Material | Music Wire |
| Overall Length (Decimal Inch) | 7.8540 |
| Initial Tension (N) | 41.6 |
| Maximum Extended Length (mm) | 306.54 |
| Free Length (mm) | 195.000 |
| Inside Hook Length (Fractional Inch) | 7-11/16 |
| Standards | JIS G3522 SWP - A/B; EN 10270-1; ASTM A228 |
| Finish/Coating | Dry to Touch Oil |
| Wire Size (mm) | 2.20 |
| UNSPSC Code | 31161907 |
